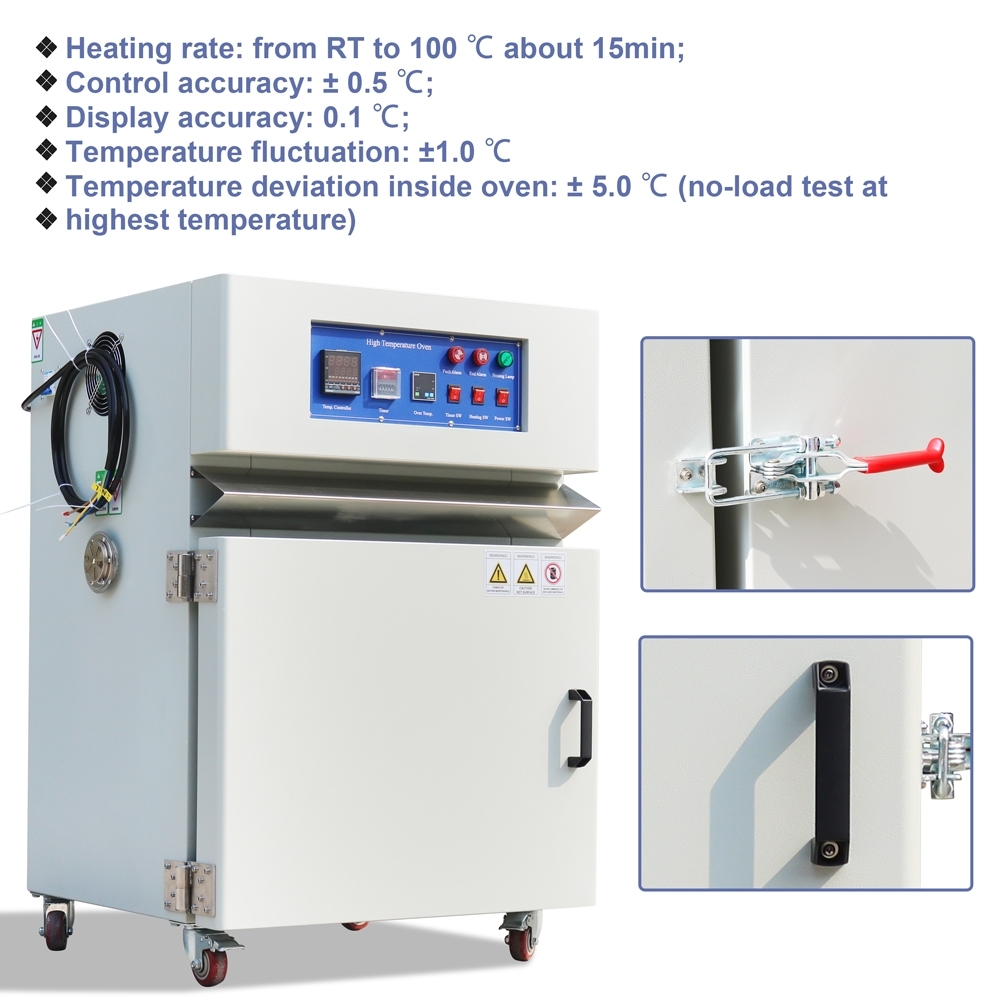

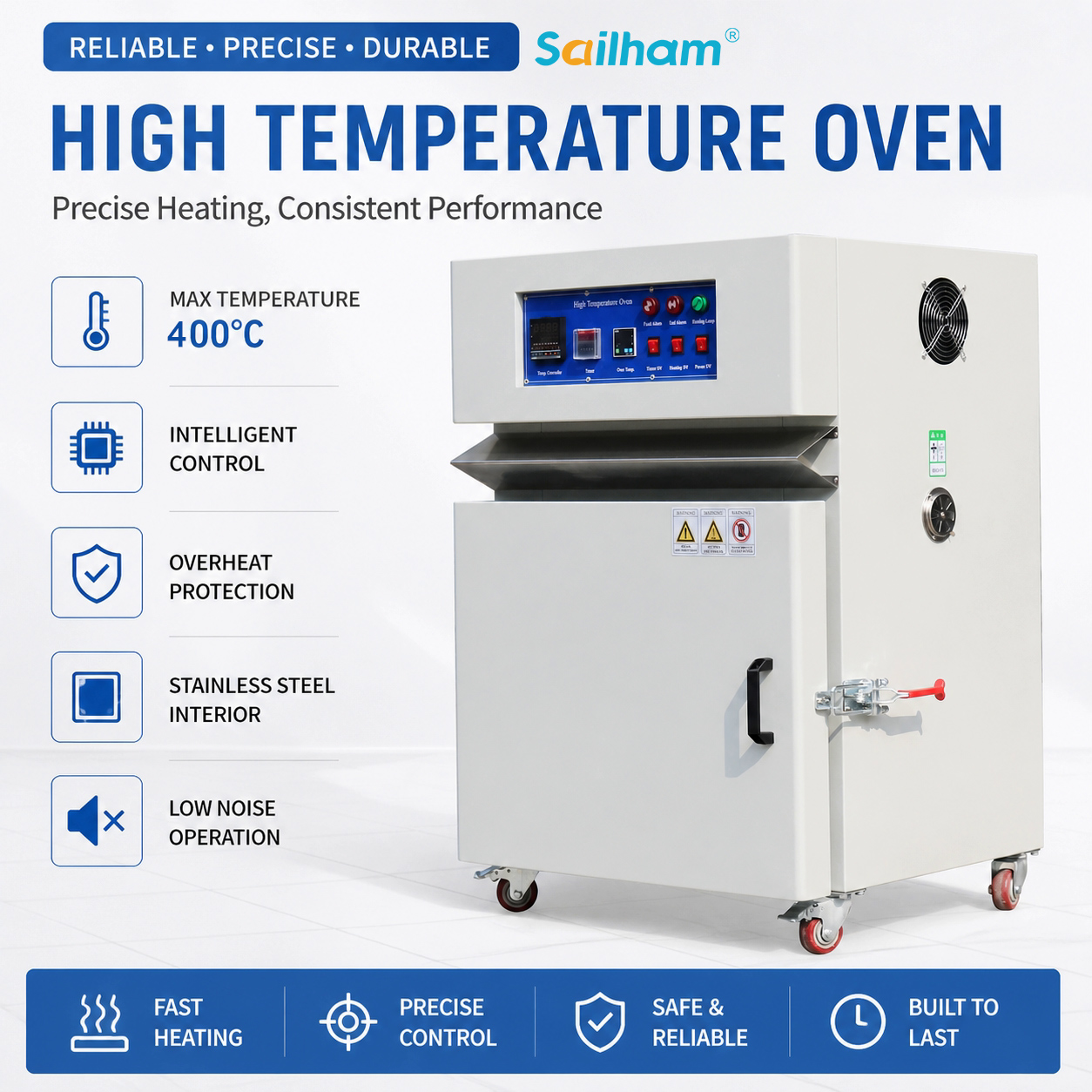

High Temperature Drying Oven For Laboratory And Industrial Applications

1. Features.

l Using LED display, button type controller, saving cost, single point single temperature control mode

l The casters are installed at the bottom, which can be moved according to the placement position

l K-type thermocouple temperature sensor, high precision, fast temperature sensing, high temperature resistance, low maintenance

l The outer box is made of Q235 cold-rolled steel plate, sprayed and painted, corrosion-resistant and high-temperature resistant, and has a perfect structure

l The inner box is made of 304# stainless steel sand board, which is resistant to high temperature, smooth surface, easy to clean, and easier to maintain

2. Function.

This series of equipment is one of the commonly used equipment in various baking and aging experiments. It is suitable for electronic instrumentation, materials, electricians, vehicles, metals, electronic products, and various electronic vitality parts to test their various performance items in a temperature environment. Pointer. And for quality management.

3. Sample limited.

This equipment prohibits the test of flammable, explosive, and volatile substance samples; the test of storing corrosive substance samples, the test of storing organisms, the test and storage of storing strong electromagnetic emission source samples, etc.

4. Power supply unit

1) Voltage: AC 220V, 1 phase, 3-wire 50HZ

2) Current: 20A

3) Power: 4.5KW

5. Air supply system

1) Mode of transport: internal hot air circulation;

2) Fan is long-axis high temperature resistant type, power 370W/220V;

3) Wind wheel is multi-blade turbine type 7.5 inch;

4) One air outlet on the left side of the oven to prevent high temperature and high pressure and exhaust gas.

6. Security system

1) High temperature protection system: When the temperature is out of control, and set temperature is exceeded, the heating supply is automatically stopped, thus protecting the safety of products and machines;

2) Circuit protection system: grounding protection, phase loss protection, overload protection, disconnect switch, etc.

7. After-sales service commitment

1) Our technical service department is responsible for after-sales service to share you with professional technical services including operation, maintenance.

2) Technical personnel on-site or telephone guidance for installation, free training available for those who purchased our machines and including basic catering accommodation.

3) Upon received service requirements from customer, within 24 hours (time difference) solutions will be provided for customers; for home services that the freight charge, catering accommodation shall be at buyer’s own expense.

4) One year free warranty; products due to quality problems will share the free maintenance exclude non-quality issues, man-made damage and wearing parts.

5) Products share the life-long service and accessories and wearing parts provided.
