Industrial High Temperature Oven for Drying Heating and Thermal Testing

High temperature oven is a laboratory‑grade high‑temperature oven designed for thermal baking and accelerated thermal‑aging evaluation of electronic components, metallic workpieces and engineering materials, with a maximum rated temperature of 400 °C and practical continuous operating temperature up to 360 °C. The 72‑litre inner chamber is constructed from SUS304 stainless‑steel sand plate, and the outer enclosure features powder‑coated cold‑rolled steel. A 120 mm‑thick aluminum silicate cotton insulation layer minimizes heat loss.

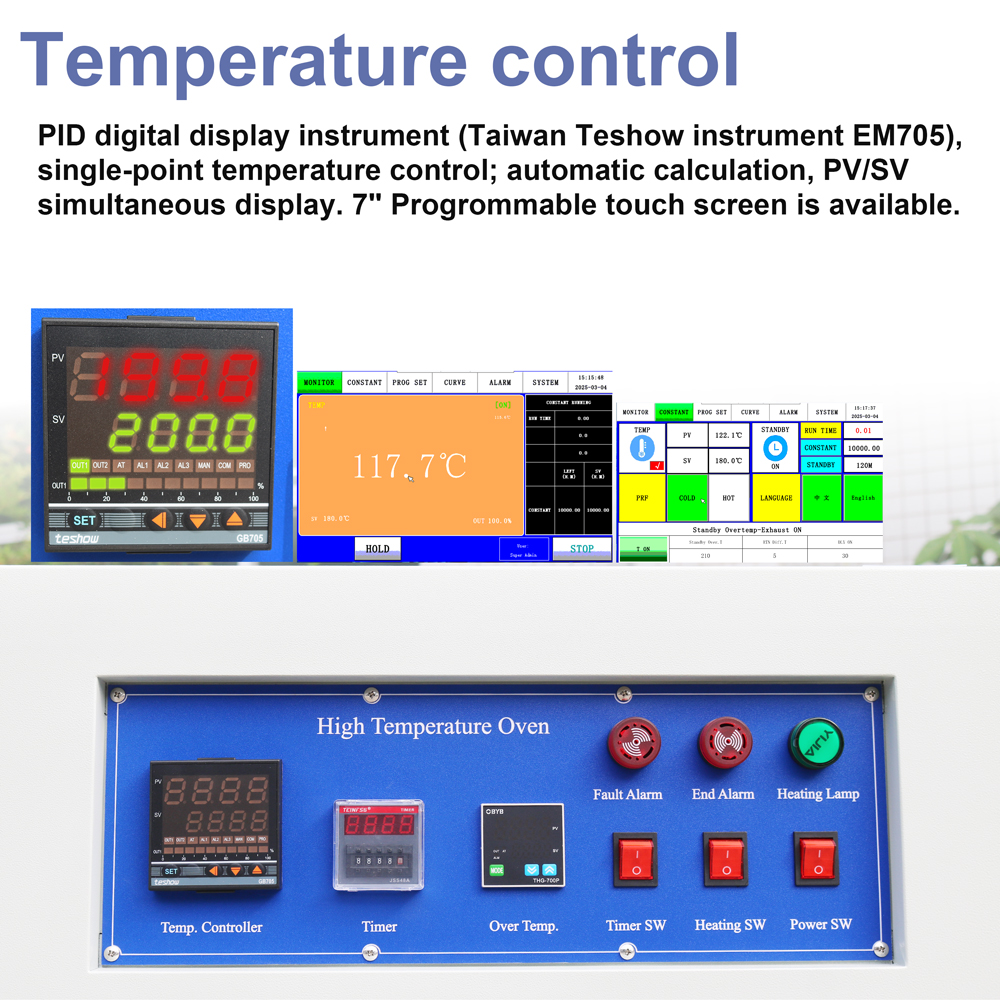

Incorporating Taiwan Teshow PID controller and K‑type thermocouple, it achieves ±0.5 °C control accuracy with configurable timer ranging from 1 second to 9999 units. Internal hot‑air circulation via high‑temperature long‑axis fan optimizes temperature homogeneity. Comprehensive safety mechanisms include over‑temperature cut‑off, overload, earthing and phase‑failure protection. Two sample racks, mobile casters and levelling feet facilitate flexible deployment. Flammable, explosive, volatile and corrosive specimens are prohibited. Rated power 4.5 kW, single‑phase AC220V, suitable for laboratory reliability testing and quality assurance workflows.
