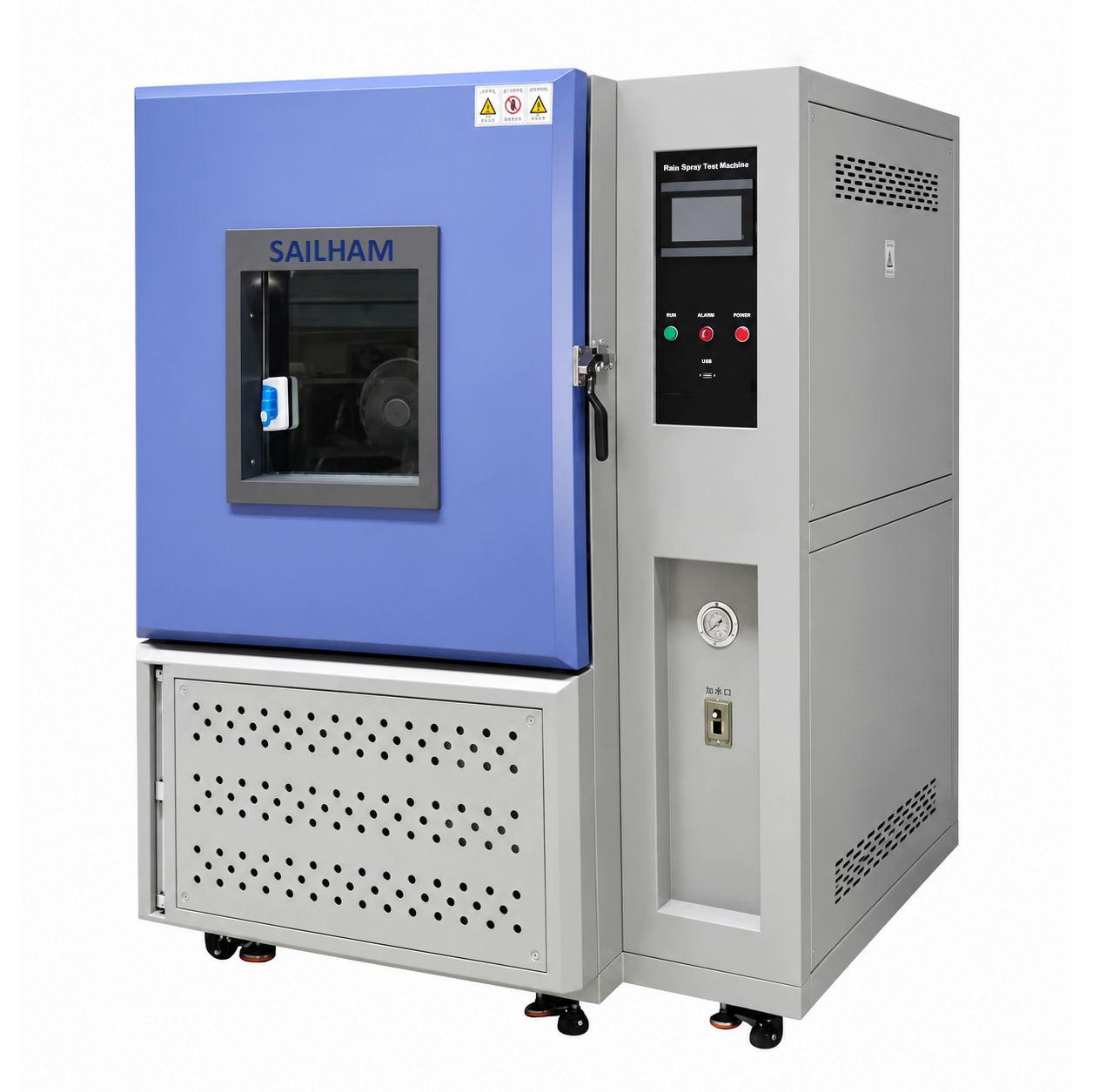

IPX9k Rainy Weather Environmental Test Machine Rain Spray Test Chamber
Telephone:+86 13018663273
Mail:carleen@sailham.com
|
IPx9k waterproof test chamber is a device used to test the waterproof ability of products under high temperature, high pressure, and strong water flow. The main function of this testing equipment is to test the performance of products during storage, transportation, and use in high-temperature, high-pressure, and rainy weather environments.
This equipment is mainly used for testing the physical and other related properties of electronic and electrical products, lamps, cabinets, electrical components, automobiles, motorcycles, and their parts under simulated high-temperature, high-pressure, and rainy weather conditions. After testing, the performance of the product is judged to meet the requirements through calibration, in order to facilitate the design, improvement, calibration, and factory inspection of the product.
It is compliant with standards of IPx9K test mentioned such as IEC60529, GB4208, DIN40050-9, ISO20653, etc., the test function (IPX9K) is used for electrical product inspection of the enclosure protection level IEC (IP supplementary code enhanced test), and is manufactured according to the relevant specifications in DIN40050 standard.
Application and function | Application areas: automotive parts and other electronic and electrical products. Function: It is mainly to test the physical and other related properties of vehicles such as buses, tractors, motorcycles, and their components under high-pressure/steam jet cleaning process conditions. After testing, the performance of the product is evaluated through calibration to determine whether it meets the requirements, in order to facilitate the design, improvement, calibration, and factory inspection of the product. |
Sample prohibited | The following samples are prohibited to be tested or stored: - Inflammable, explosive and other volatile substances; - Corrosive substance; - Biological samples; - Strong electromagnetic emission source. |
Machine features | l Rotary table drive: using a stepper motor, the speed can be set on the touch screen (adjustable), and can be accurately and infinitely adjusted within the standard range. l This test chamber adopts an original Italian imported water pump set, which is resistant to high temperature and high pressure, can be used for a long time, and has stable performance. l The testing time can be set on the touch screen, with a range of 0-999 minutes (adjustable). l The core control system adopts a 7-inch touch screen and electrical components such as Schneider, with wiring processes that comply with national standards, reasonable layout of electrical boards, firm wiring, and clear labeling. |
Conforms to standards
| DIN40050-9 Road vehicles; degrees of protection (IP-code); protection against foreign objects; water and contact; electrical equipment IEC60529 Degrees of protection provided by enclosures (IP Code) ISO20653 Road vehicles - Degrees of protection (IP-code) - Protection of electrical equipment against foreign objects, water and contact GB/T 4208-2017 Degrees of protection provided by enclosure (IP code) |
Capacity | |
Inner size | W 1000 × H 1000 × D 1000 (mm); Volume: 1000 Liters |
External size | W 1450 x H 1750 x D 1500 mm |
IPX9K parameters | |
Spray ring angle | 0 °, 30 °, 60 °, 90 ° |
Test time | 30s (4 positions for a total of 120s) , it can also be customized for testing time. |
Number of spray holes | 4 |
Spray water temperature | Room temperature~85 ℃± 5 ℃ (adjustable) |
Spray distance | 100-200mm (adjustable manually) |
Spray pressure | 8000～10000Kpa |
Turntable diameter | 400mm |
Turntable speed | 1～5r/min |
Load bearing capacity of turntable | 20kg |
Structure | |
Structural Materials | l The inner box and the water tank are made of SUS304 stainless steel plate, water level with low and full indication. l The spray pipe and turntable is made of stainless steel. l The nozzle is detachable and equipped with a plug, making it easy for customers to replace according to the required number of spray holes according to the standard. l The door is a single door with a large observation window and equipped with wiper brushes. l The outer box is made of cold-rolled steel plate with baked paint. |
Security Protection | l Power supply reverse phase protection l Motor overload protection l Motor overheating protection l Water tank shortage protection l Power supply overload short circuit protection. |
Power cord&drain hole | A. The standard 2.5-meter cable and drainage interface are located on the back of the equipment. |
