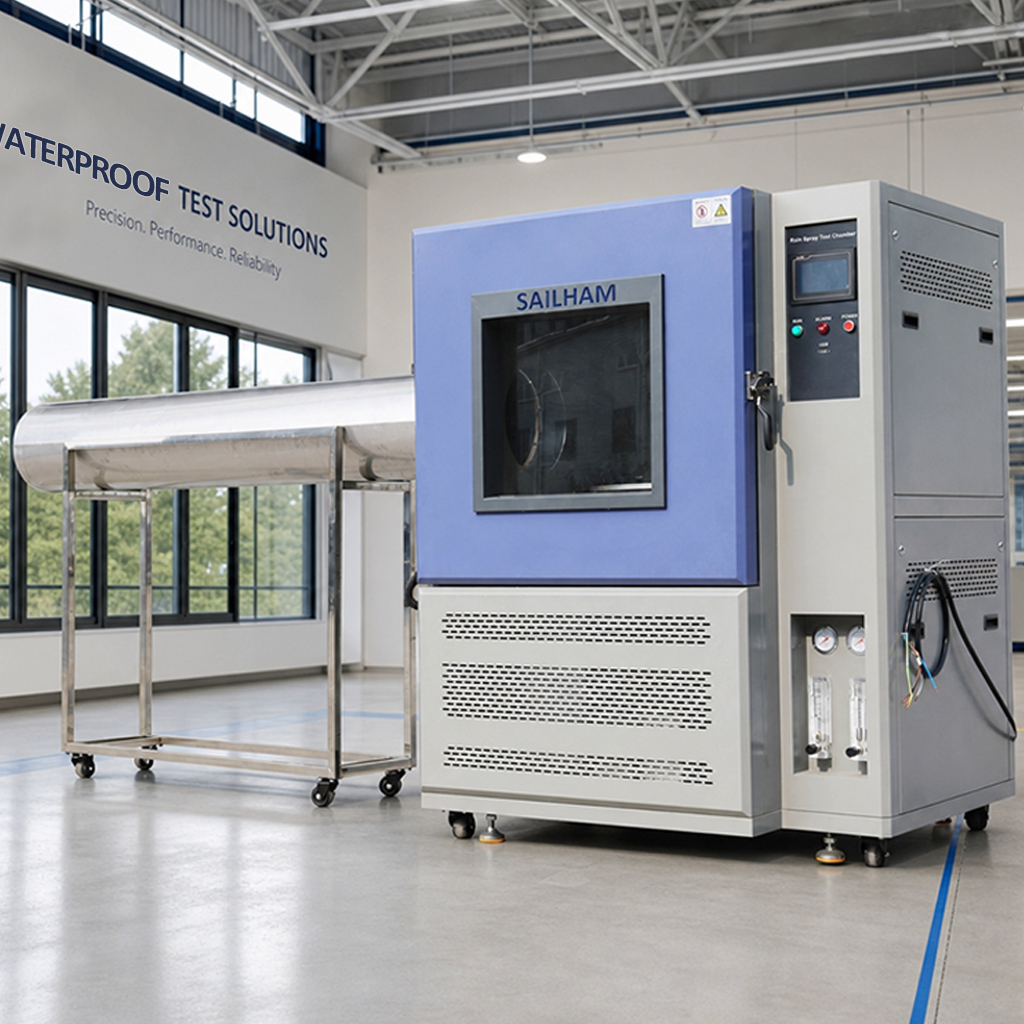

IPX6K Water Proof Test Chamber Reliability Environmental Test Equipment
Telephone:+86 13018663273
Mail:carleen@sailham.com
|
According to the IEC 60529, ISO 20653, and GB 4208 standards, the IPX6K high-pressure water spray test chamber simulates the omnidirectional spraying environment of a high-pressure water gun in accordance with international protection standards. It is used to test the sealing performance of the product shell, verify whether the product meets the IPX6K waterproof level requirements, and is widely used in product research and development, factory inspection, and export certification to ensure the safe use of equipment under high-pressure cleaning and outdoor strong spraying conditions.
Application:
✅ Resist high-pressure water guns from close range strong spraying (such as car washing, equipment flushing)
✅ Prevent rainstorm, storm and wave impact in all directions
✅ Prevent high-pressure cleaning water from entering the box, protect internal electrical, control components, and refrigerant pipelines
✅ Suitable for harsh outdoor and frequent washing conditions
Typical application scenarios:
Outdoor waterproof box/control cabinet, energy storage cabinet, charging station
Electric control box and battery box for automobiles / new energy vehicles
Compared to regular IPX6 (key difference lies in pressure)
IPX6: 12.5 mm nozzle, 100 kPa, 100 L/min → rainstorm/strong shower
IPX6K: 6.3 mm nozzle, 1000 kPa, 75 L/min → high-pressure water gun/industrial cleaning
Main technical parameters | |
Inner size (mm) Volume: L | 1000 x 1000 x 1000 (1000L) |
External size (mm) appr. Including the spray bucket | W3860*H1880*D1225 |
Turntable diameter | 600 mm |
Specification | |
Water pressure | 1000 kPa (adjusted according to the specified water flow rate) |
IPx6K water flow rate | 75L/min ±5%（Water jet, figure 6, nozzle 6,3mm diameter distance: 2.5m to 3m; approx 1000kpa） |
IPx6K spray nozzle | Nozzle for determining the protection against high-velocity water, degrees of protection against water 5,6 and 6K IPx6K nozzle diameter: 6.3 mm |
Turntable speed | 1-9RPM (adjustable) |
Spray distance | 2.5~3 m |
Conforms to the test standards | GB/T 4208-2017 Degrees of protection provided by enclosures (IP code) IEC 60529:2013 Degrees of protection provided by enclosures (IP Code) ISO 20653: 2013 Road vehicles - Degrees of protection (IP code) - Protection of electrical equipment against foreign objects, water and access |
Control system | The hardware architecture adopts: PLC + 7-inch human-machine interface touch screen; The software is independently developed by Sailham (with strong scalability and the ability to customize non-standard software according to requirements); |
Safety protection device | Power short circuit overload protection, water tank shortage protection, motor overcurrent protection |
Structure & Material | |
Material | (1) The inner boxes and water tank are all made of SUS304 stainless steel plate, with water level low and full indication. The turntable is made of stainless steel (2) The outer box is made of cold-rolled steel plate and baked with paint. |
Door | A single door with a left opening, equipped with a large observation window, and equipped with a wiper brush. |
