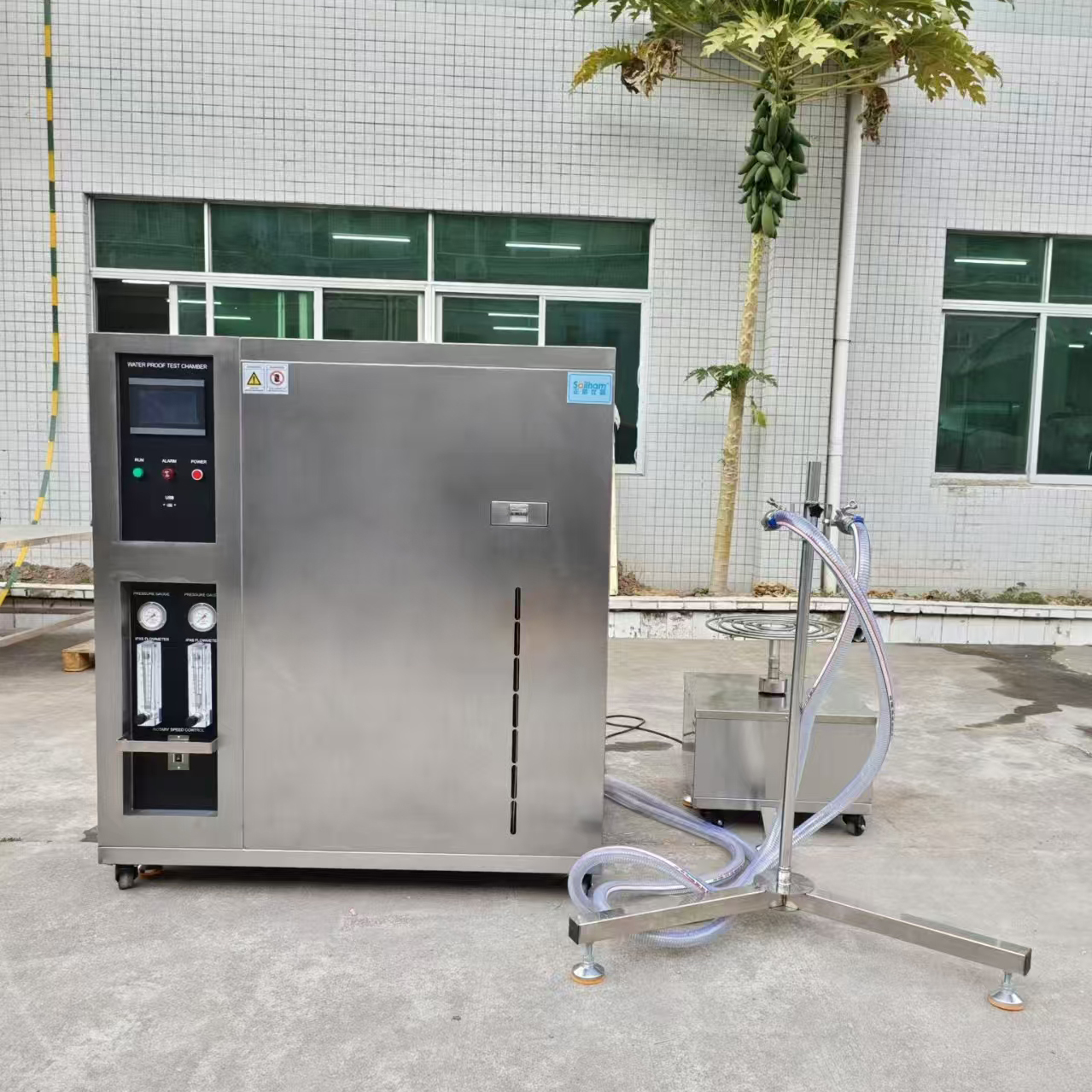

IPX56 Lab Rain Spray Chamber Waterproof Test Machine For Water Resistance Reliability Inspection
Telephone:+86 13018663273
Mail:carleen@sailham.com
|
The waterproof test chamber (Rain spray test chamber) is suitable for testing electrical products, enclosures and seals to ensure good performance of equipment and components in a rainy environment. The scientific design of this product enables the device to realistically simulate various environments such as dripping, watering, splashing, and water spraying, for waterproof performance testing and IP waterproof rating test.
The machine uses the artificial simulated rainfall environment to test the waterproof ability of the tested products according to the international standard requirements; it is designed and manufactured in accordance with IEC60529: 2001 "Degrees of security provided by enclosures (IP Code: IPx5, IPx6)", GB4208-2008 "Enclosure protection class (IP code)" 14.2.5, 14.2.6 te rms and Figure 6 and GB7000.1 "lamps first part: general Requirements and tests "9.2.6, 9.2.7 and Figure 9.5 requirements.
Sizes optional (other bigger sizes can be customized) | |
Structure | Open type |

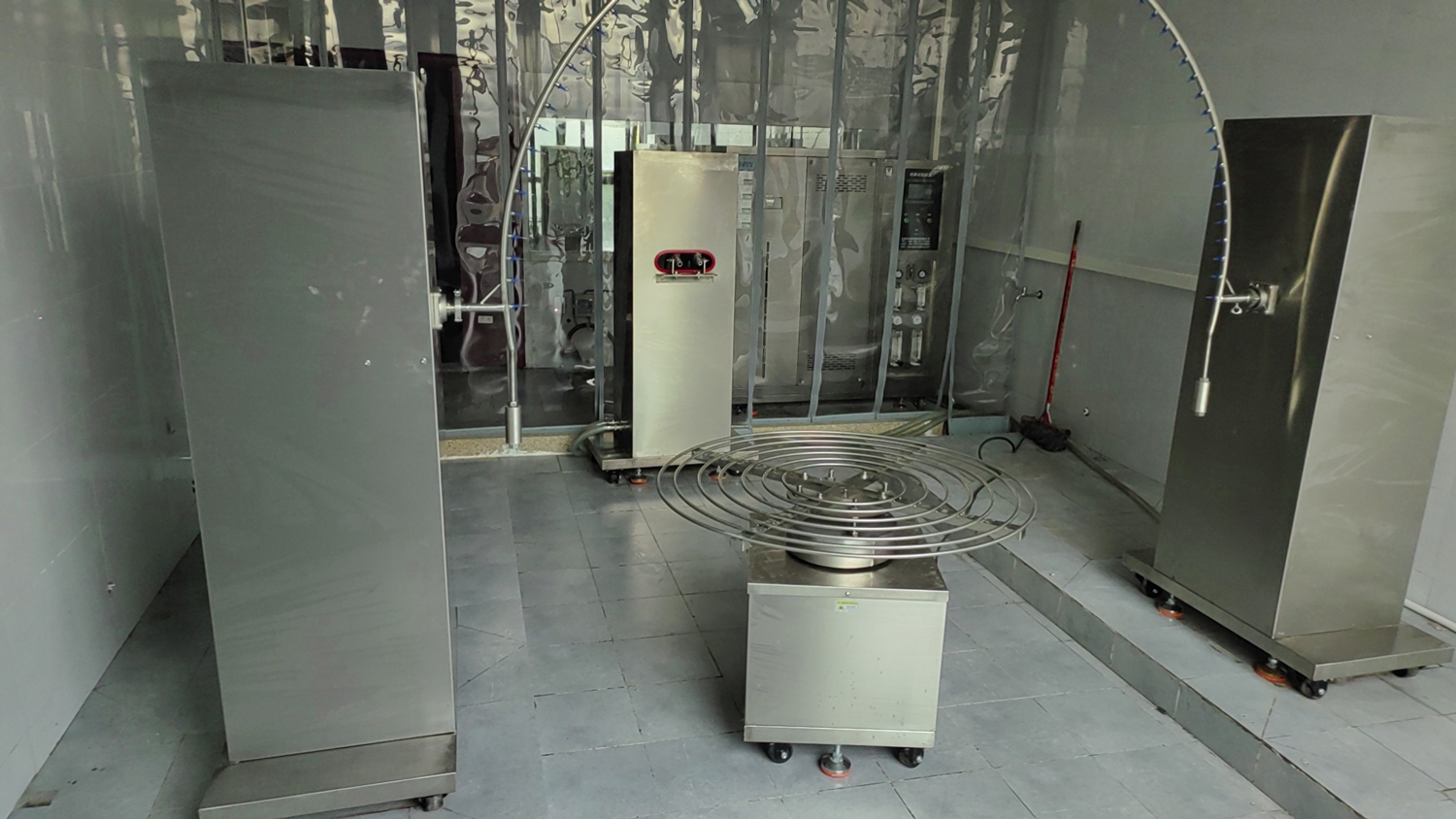

Swing tube radius | R400 mm |
Turntable diameter | 600 mm |
Specification for IPX5, IPX6 Test | |
IP56 nozzle | IPX5: 6.3mm, IPX6: 12.5mm |
IPX5 water flow rate | 12.5L±0.625L/min |
IPX6 water flow rate | 100L±5L/min |
Sample placement rack (turntable) |
Turntable bearing load: ≤50kgs The turntable uses a speed regulating motor, which is infinitely adjustable within the standard range and can control forward and reverse rotation (suitable for conducting sample power on testing to prevent winding). |
Turntable speed | 1-9RPM (adjustable) |
Spray pressure | 50kpa~100kpa |
Method of fixing spray gun | Fixed, adjusted by user |
Spray distance | 2.5~3 m (controlled by user) |
Water temperature | Ambient temperature |
Conforms to the test standards | GB/T 4208-2017 Degrees of protection provided by enclosures (IP code:IPX5, IPX6) IEC 60529:2013 Degrees of protection provided by enclosures (IP code:IPX5, IPX6) GB10485 Road vehicles-Lighting and light-signalling devices-Environmental endurance etc. |
Control system | The hardware architecture adopts: PLC + 7-inch human-machine interface touch screen; The software is independently developed by Sailham (with strong scalability and the ability to customize non-standard software according to requirements); |
Safety protection device | Power short circuit overload protection, water tank shortage protection, motor overcurrent protection |
Structure & Material | |
Material | (1) The inner boxes and water tank are all made of SUS304 stainless steel plate, with water level low and full indication. (2) The turntable is made of stainless steel |
