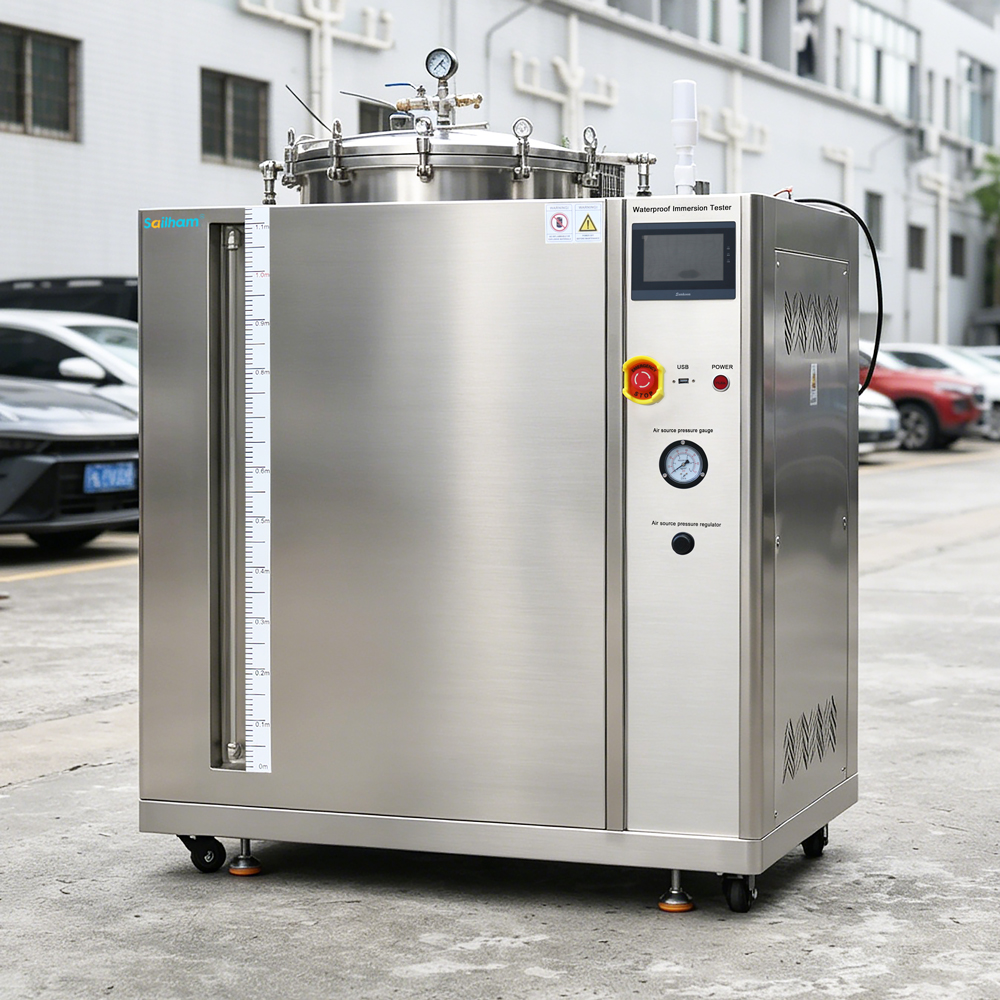

Stainless Steel Tank Water Immersion Testing Machine IEC60529 IPX7 IPX8 Water Immersion Tester

The tester is applicable to electrical and electronic products that are waterproof and may be exposed to water immersion during transportation or use; The test piece is immersed in a water tank at a specified depth to withstand the specified pressure. After the condition test, the water ingress is checked and the changes in performance are examined.

IPX8 prevents water invasion when sinking, and prevents the impact of diving; the sinking of the appliance indefinitely under the condition of the specified water pressure can ensure that it is not damaged by the water; IPX8 continuous diving test, the test conditions and test time is according to industry standards. Its severity should be higher than IPX7;

Conforms to the standard

In accordance with IEC60529: 2001 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008 "Enclosure protection level (IP code: IPX7, IPX8)" 14.2.8 clauses and GB7000.1 "Lamps Part 1: General requirements and tests" 9.2.9 Terms of requirements, GB2423,38-2008, etc.

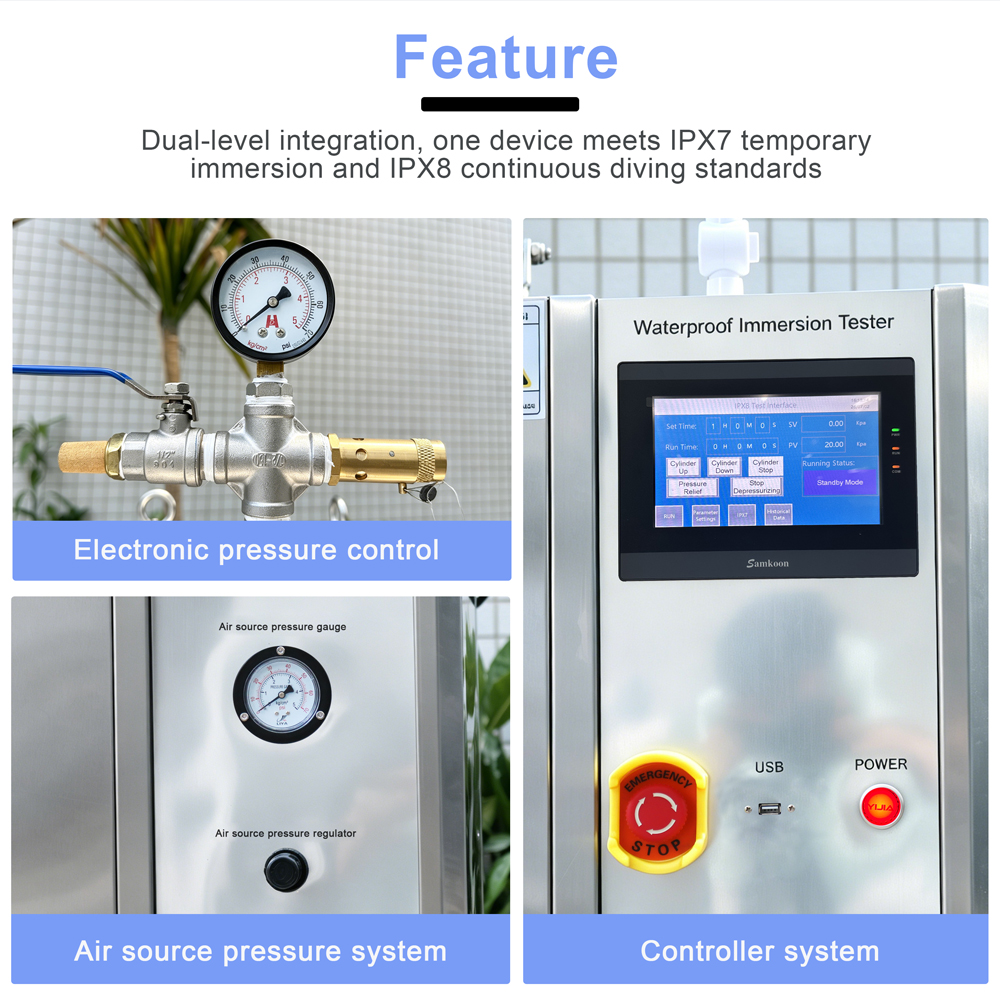

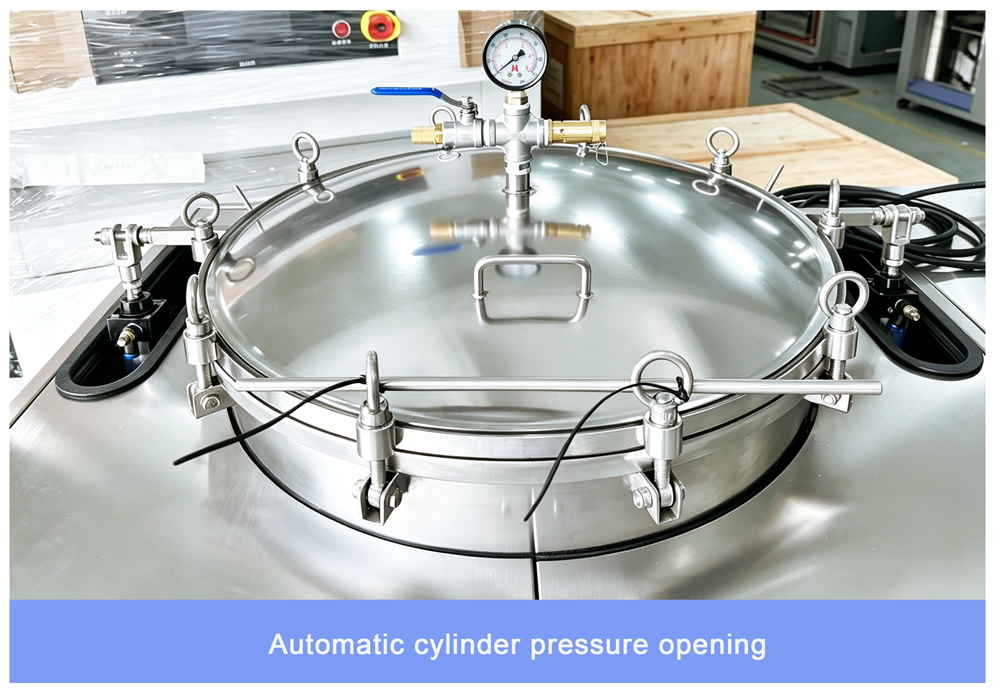

Advantages: Electronic pressure control, touch screen control, automatic cylinder pressure opening.
