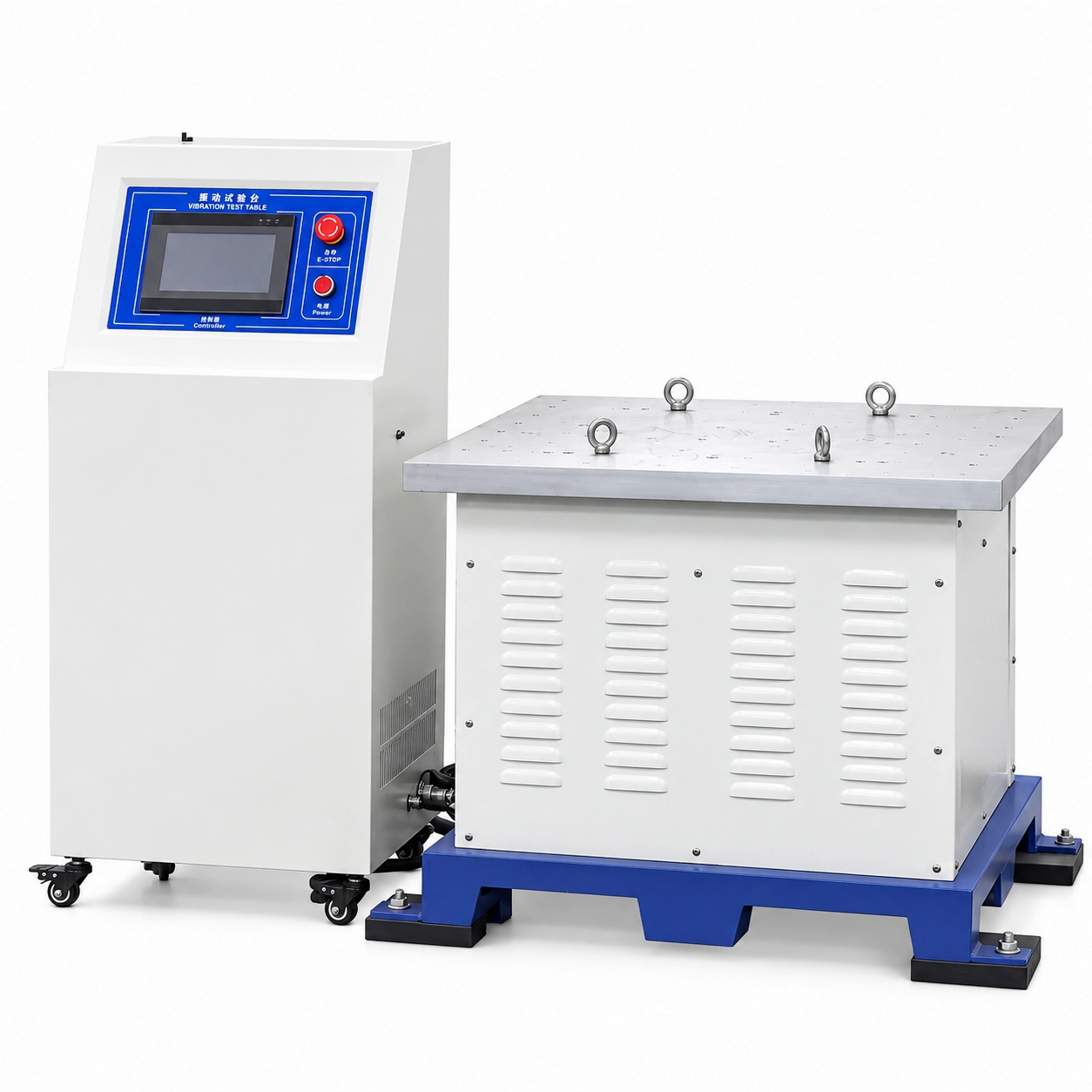

Three Axis Electromagnetic Vibration Table 2~ 600HZ Frequency Electrodynamic Vibration Test System

3-axis electromagnetic vibration shaker is a high-performance vibration testing system built for product reliability validation. It simulates real-life vibration impacts across vertical, horizontal and front-rear (X/Y/Z) directions, widely adopted by quality labs, electronics manufacturers, automotive component factories and packaging enterprises to assess structural durability and anti-vibration performance of finished goods.

Featuring a frequency range of 2~600Hz (customizable upper limit), this vibration tester delivers precise control with 0.1Hz frequency accuracy. It supports adjustable amplitude from 0 to 5mm and maximum acceleration up to 20g, with a standard test load of 60kg. Powered by electromagnetic excitation and electronic amplitude modulation, the machine outputs sine wave vibration and offers multiple operation modes: fixed frequency, sweep, multiplier, programmed, logarithmic and random vibration. Test duration can be freely configured between 0 and 9999 hours/minutes/seconds to comply with various international test standards.

Equipped with a 500×500mm test table, the unit runs on 220V single-phase power with 1.5KW power consumption and air cooling design. Comprehensive safety mechanisms guard against power overvoltage, undervoltage, output overcurrent, module overheating, platform overheating and over displacement, ensuring continuous and secure operation.

Designed to operate at 0℃~40℃ with relative humidity up to 90% (non-condensing), this shaker comes complete with standard accessories: 4 lifting rings, 2 telescopic straps, one tool set, English operation manual, factory inspection certificate and warranty document.
