Touch Screen Salt Spray Test Chamber NSS AASS CASS Corrosion Resistance Testing Machine For Metal Plating Coating Test

Telephone:+86 13018663273 Mail:carleen@sailham.com

Detail

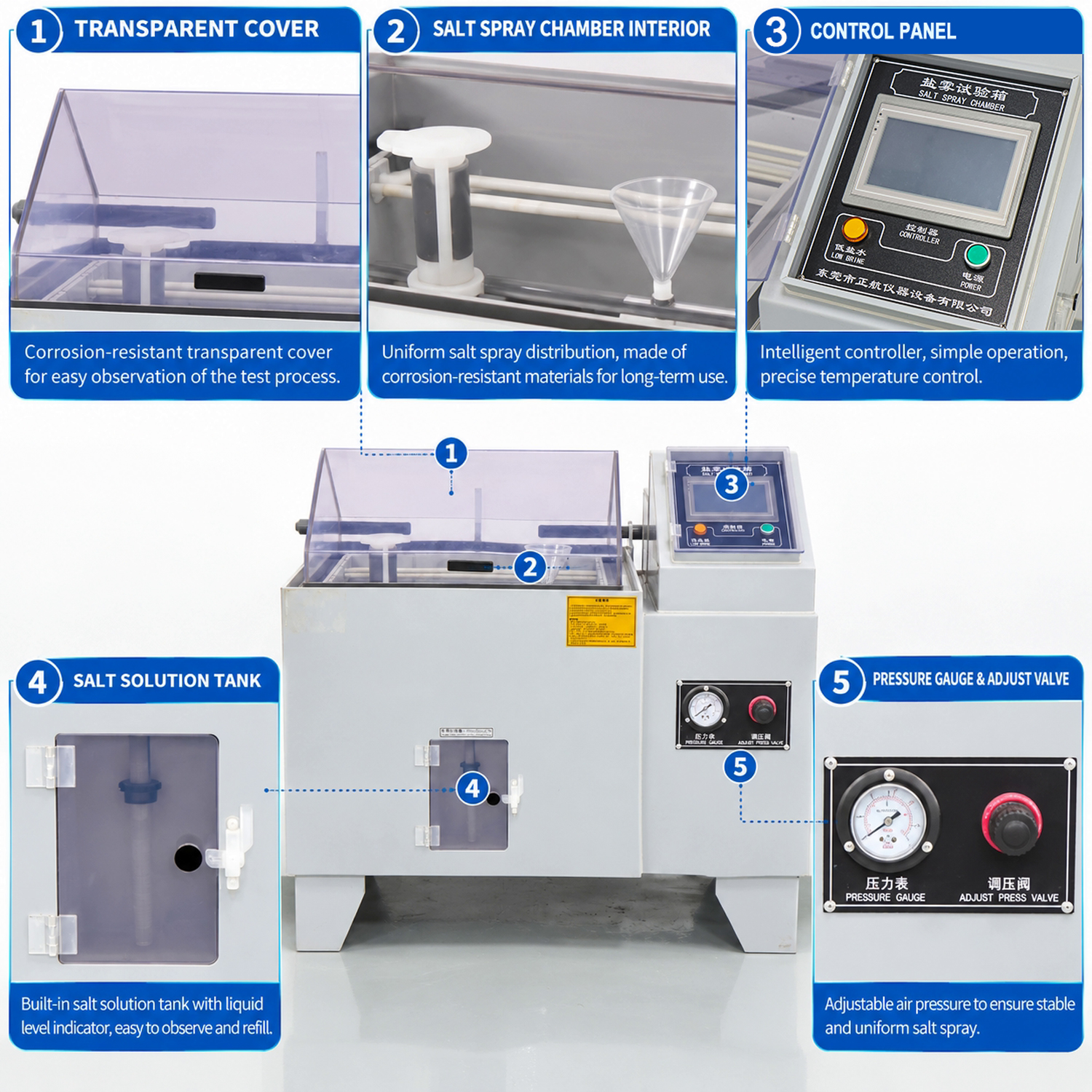

Touch Screen Salt Spray Test Chamber is professional corrosion test equipment for assessing corrosion resistance of metal, coating, electroplating and surface finishing samples. Featuring intuitive TFT touch screen control panel, it enables quick setup of test time, temperature and spray cycle, supporting NSS, AASS, CASS test modes in line with ISO 9227 and ASTM B117 standards. The tank is constructed of high-density anti-corrosion PVC, fitted with imported glass fog nozzle for even salt mist atomization. It comes with auto water supply, low water, overheat and overpressure protection to prevent abnormal operation. Real-time running status and test curves are shown on screen; USB data export function helps store and print test reports. Ideal for auto components, hardware fasteners, electronic parts and plating factories. Multiple standard sizes are in stock, customized dimensions and test requirements are acceptable



Model
ZH-TSH-60A
ZH-TSH-90A
ZH-TSH-120A
ZH-TSH-160A
ZH-TSH-200A
Inner box size:
(WxDxH) cm
60×50×50
90×60×50
120×100×50
160×100×50
200*100*50
Outside box size:
(WxDxH) cm appr.
180×100×135
210×110×135
230×148×140
270×148×150
310*148*150
Temperature range
Temperature range: 0 ℃ ~ 85 ℃ adjustable; NSS, AASS 35°C±2°C, CASS 50°C±2°C
Applies to test
NSS, ACSS, CASS, Hot air drying test (DRY), moisture test
Humidity range
20%~95%R.H adjustable
Temp. / Humidity Fluctuation
±0.5℃ / ±2%R.H
Temp. / Humidity uniformity
±2.0℃ / ±3%R.H
Body materials
PP material, thickness of 10mm
Spray volume
1.0~2.0 m1/80cm²/h (collect at least 16 hours, take the average value)
Spray pressure
1.00±0.01kgf/cm²
Power supply source
AC380V 50/60Hz, 3 phase
