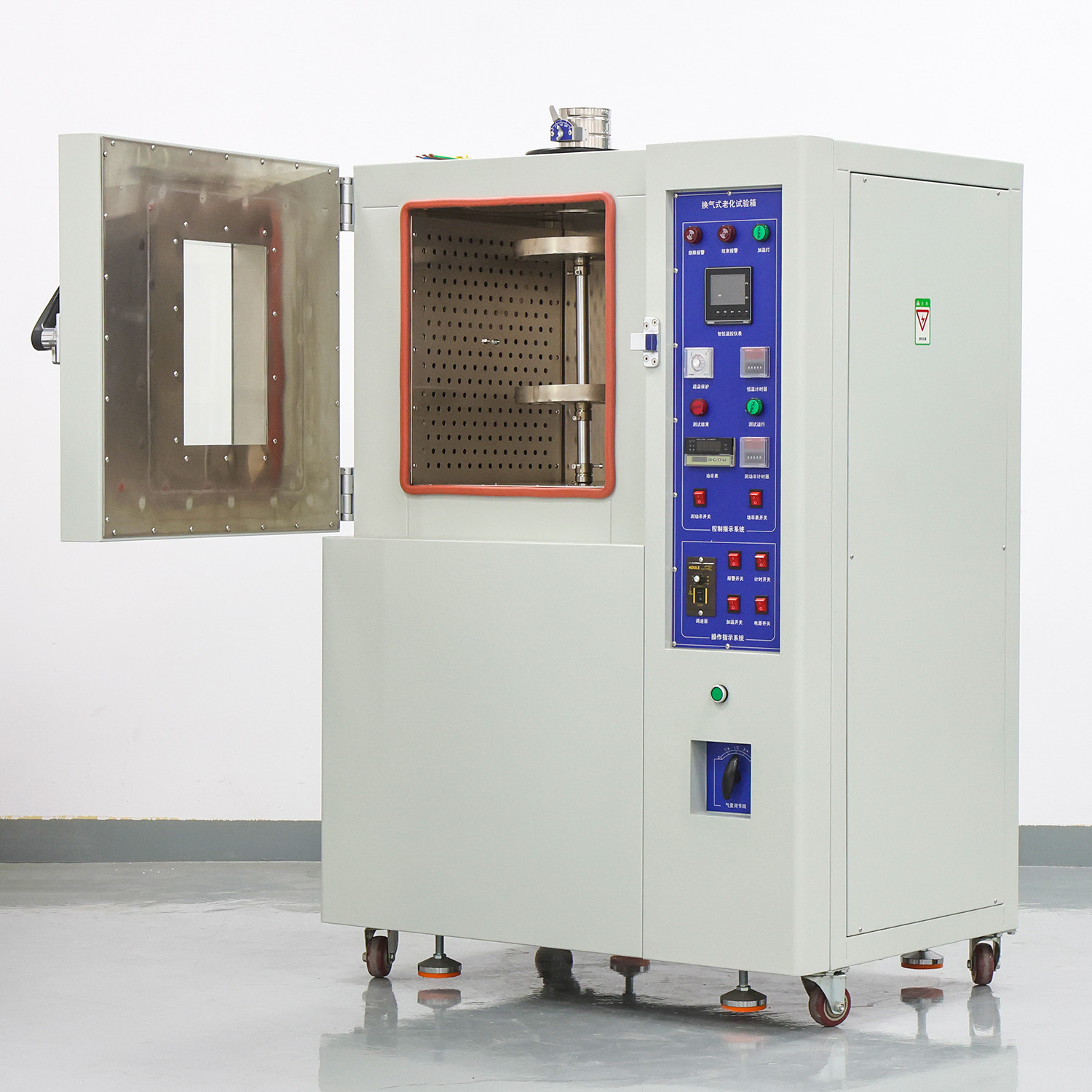

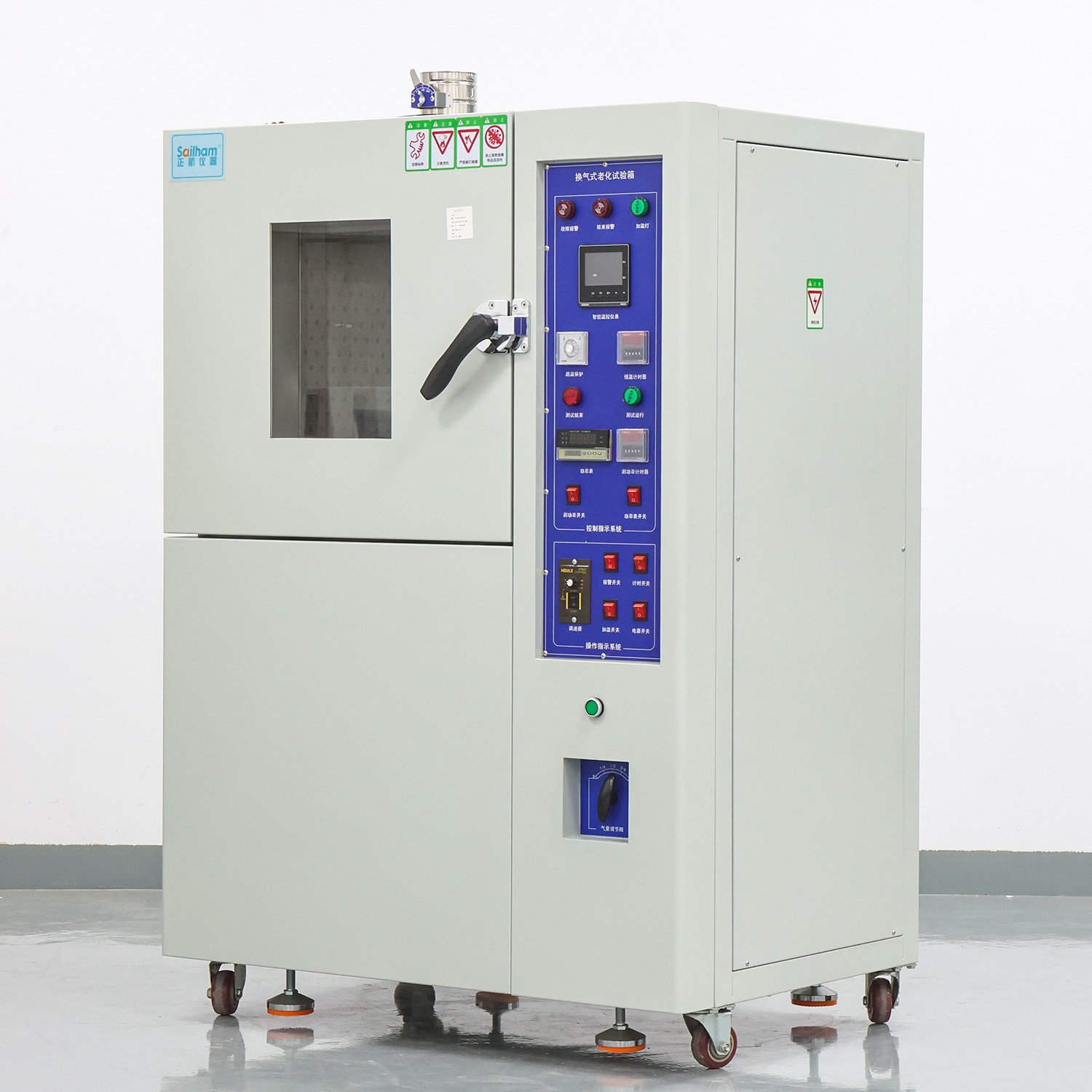

Ventilation aging test chamber is suitable for heat resistance test of electrical insulating materials, electronic parts, accessories, and plasticized products, etc.; to assess and judge its adaptability for storage and use under high temperature environmental conditions, The performance was measured after aging in the air under simulated high temperature and atmospheric pressure and compared with the performance of unaged samples.
Ventilation system
1)Ventilation: 3-10 times per hour;
2)Configure the power meter for testing when ventilating and when not ventilating;

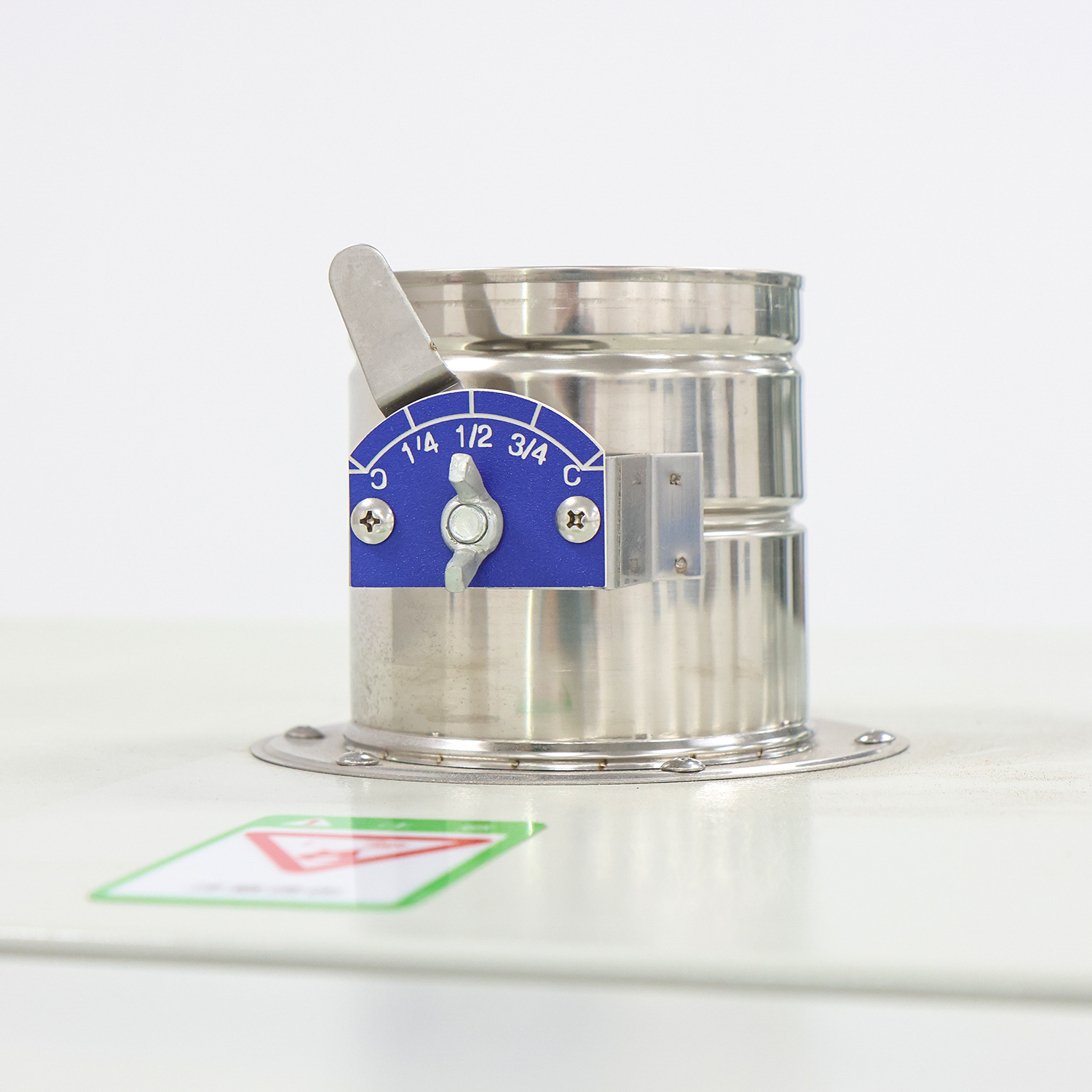

3)Ventilation using adjustable duct control, manually adjust the amount of the fresh air;
4)Manually adjustable air flow duct, located at the top of the machine; (exhaust must be discharged to the outside)
5)Ventilation method: natural intake and exhaust.

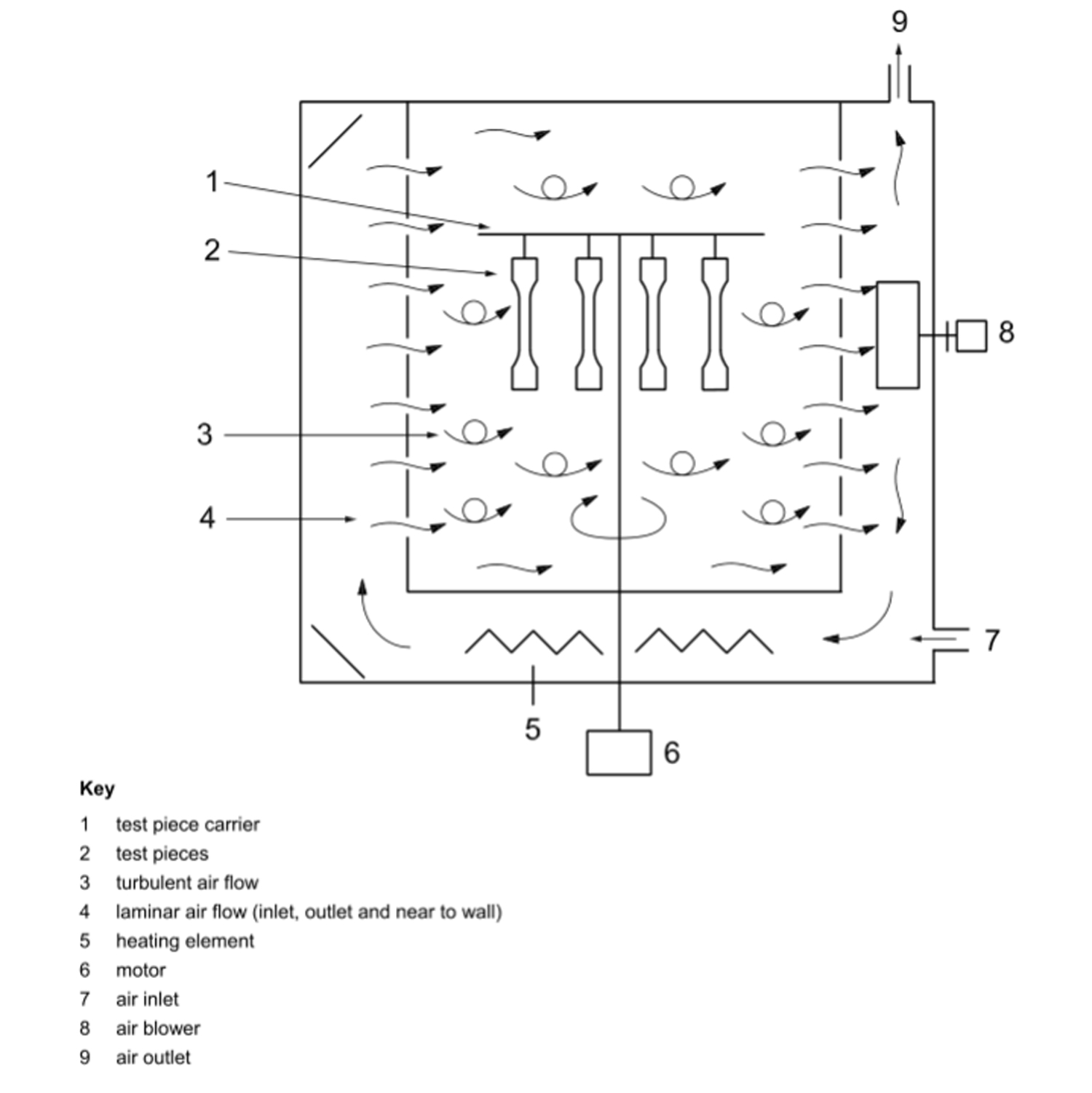

Circulating air supply system
1)Air supply mode: internal hot air circulation;
2)Motor is a special type of long high-temperature resistant axis, power 370W/220V;
3)Wind turbine is multi-wing turbine type 7.5 inch;
Safety protection system
1)Over-temperature protection system: When the temperature is out of control, over-temperature protection exceeds the set temperature the system will automatically stop heating supply to protect the security of your products and machinery;2)Circuit protection: ground protection, fast insurance and so on.
Power supply device
3)Voltage AC 220V, 50/60HZ, 1 phase (customized)
4)Current 16A
5)Power 3.5KW Inner size | 450 (width) × 450 (depth) × 500 (height) mm ± 5; (other sizes optional) |
External size | 1150 (width) × 710 (depth) × 1520 (height) mm; |

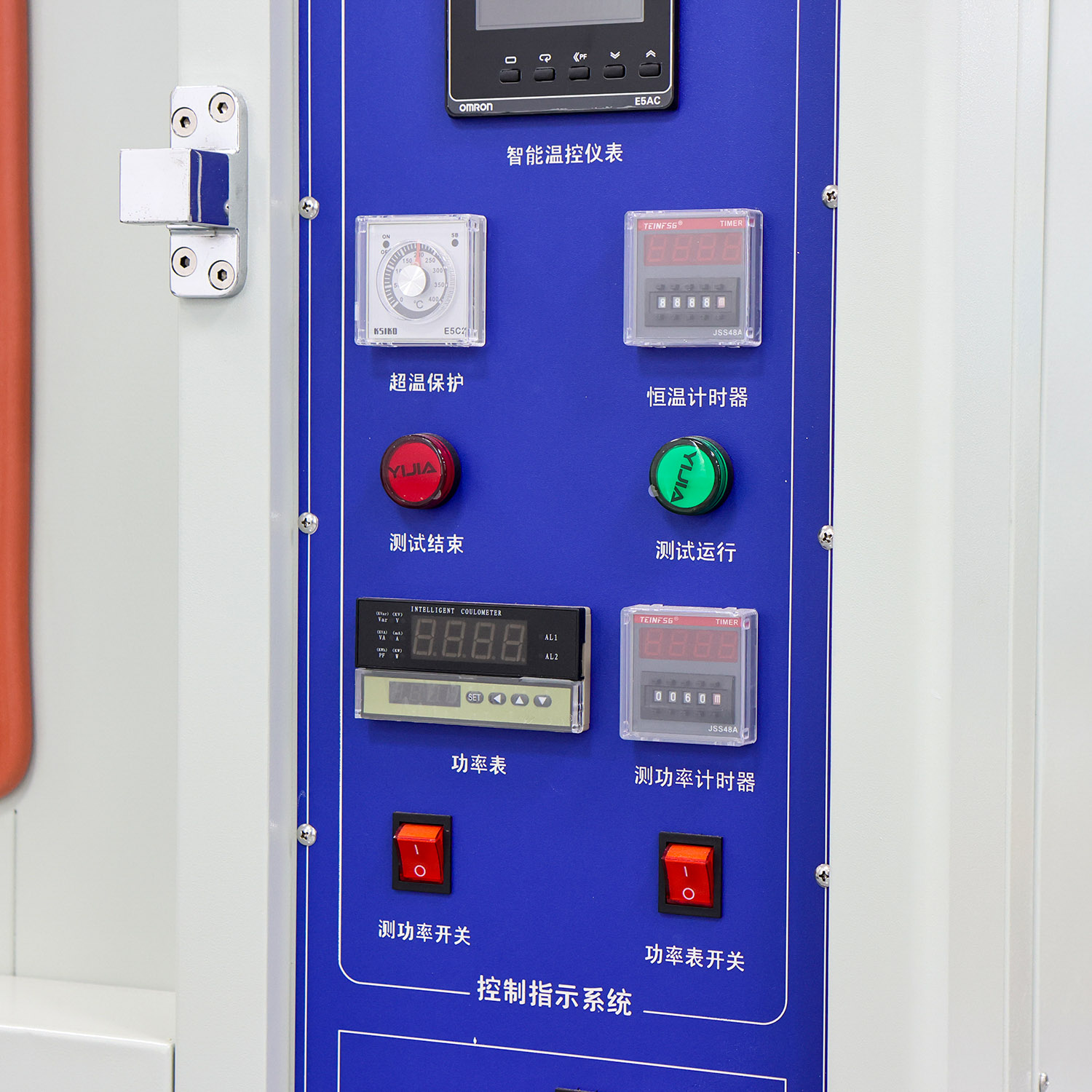

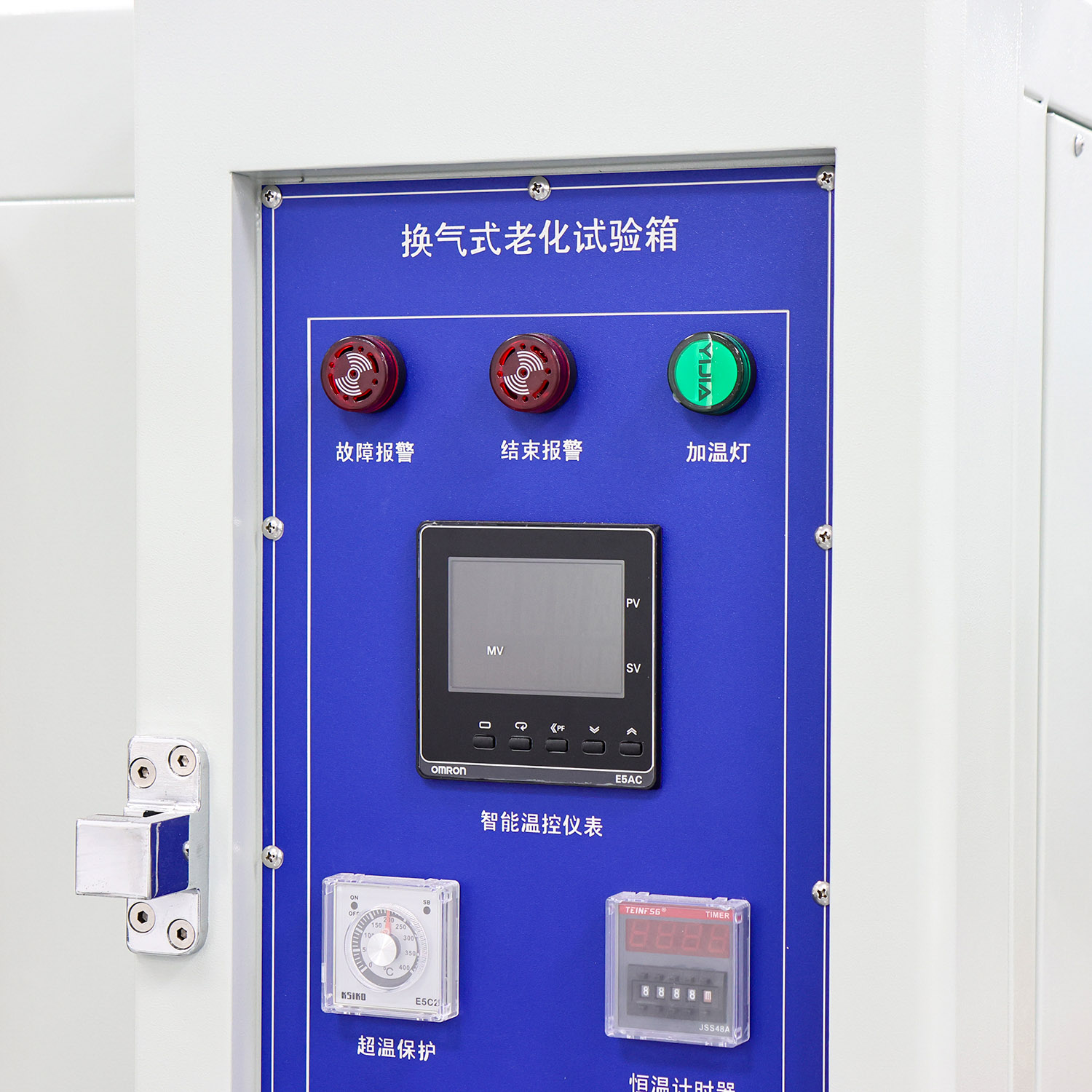

Operation panel | control panel is located on the right side of the machine (pictured); |
Open the door | open a single door from right to left; |
Observation window | door with tempered glass window, size |
Inner material | 304 # stainless steel sand plate |
External material | cold-rolled steel plate, 1.2mm in thickness with powder paint treatment; (off-white) |

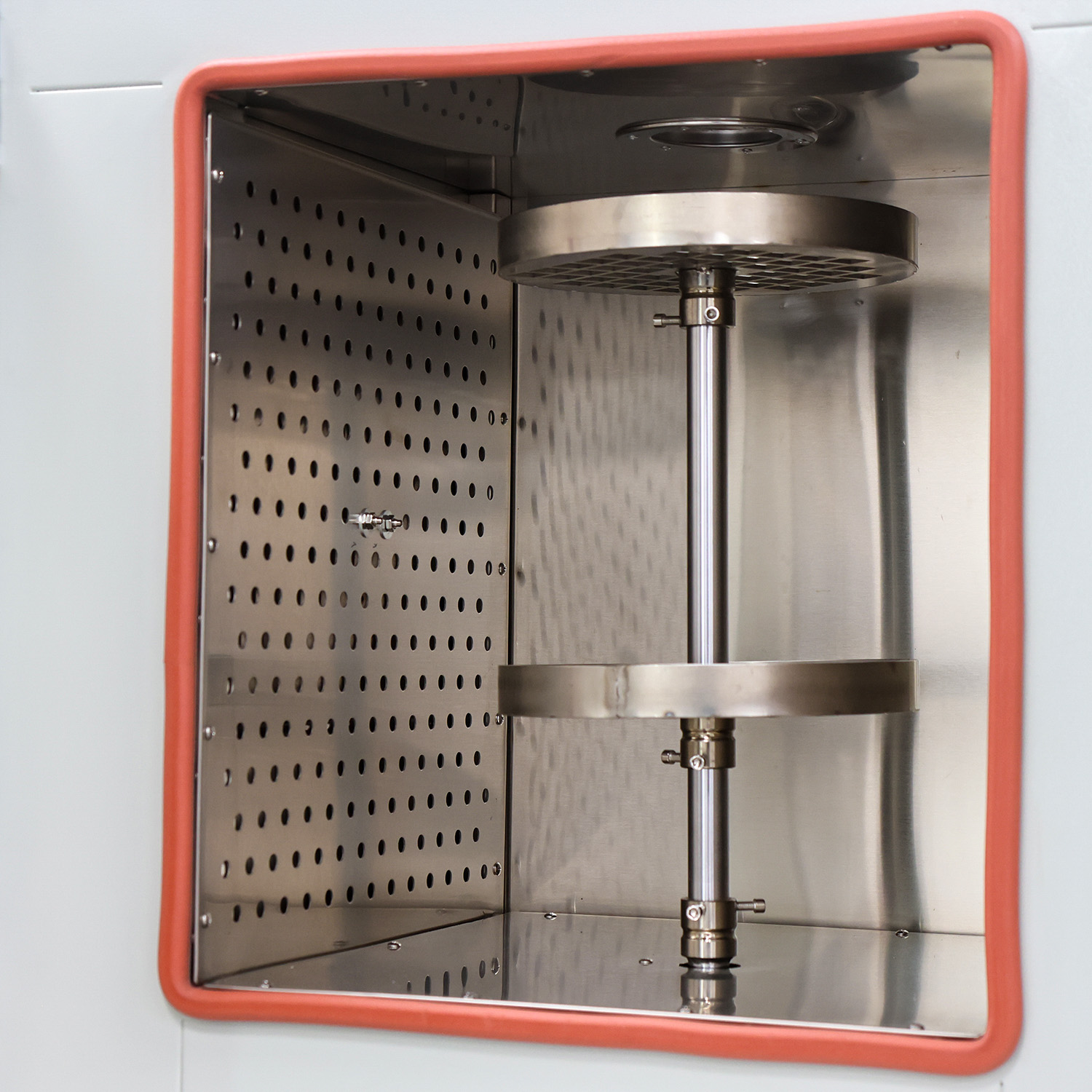

Product material | two built-in turntables, diameter 250mm, while configuring the two network boards; |
Air change rate | 3-10 air changes or 8-20 air changes |
A set of speed motor, speed 3-20 RPM adjustable; |
Insulation material | high temperature resistance fiber rock wool, with good insulation effect; |
Door seal material | high temperature silicone bar; |
Machine with four activities casters and fixed feet, movable or fixed. |
Temperature control system | digital key pressing control or Programmable touch screen control |
Heat material | stainless steel heat-resistant heating tube; |
Temperature range | RT +25 ~ 300 °C adjustable, commonly used within 260 degrees; (other temperature range optional) |
Heating rate | It may takes about 60min heating to 300°C; |
Control accuracy | ± 0.5 °C; |
Display accuracy | 0.1 °C; |
Temperature deviation | RT+25～180±2.0℃, 181～280±3.0℃. (No-load test) |
