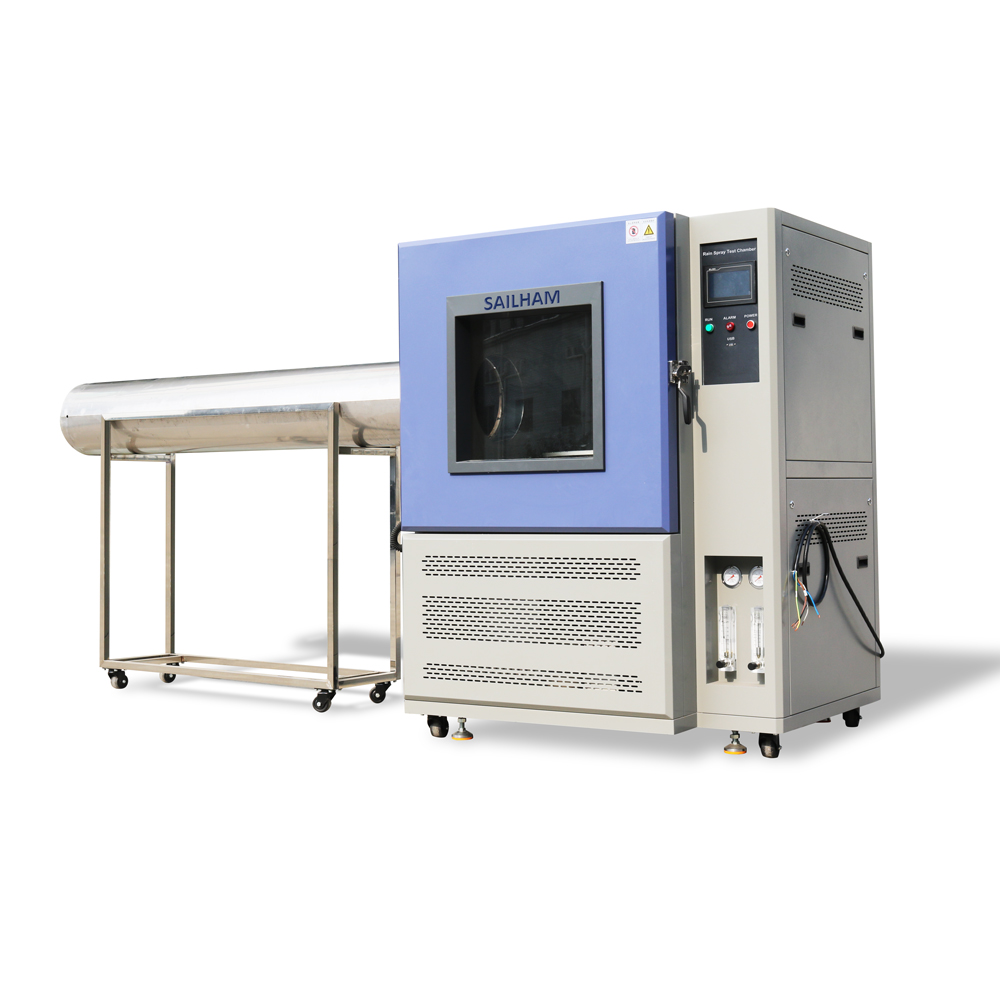

IPX5/6 Rain Test Chamber for High-Pressure Waterproof Testing
Telephone:+86 13018663273
Mail:carleen@sailham.com
|
The waterproof test chamber is suitable for testing electrical products, enclosures and seals to ensure good performance of equipment and components in a rainy environment. The scientific design of this product enables the device to realistically simulate various environments such as dripping, watering, splashing, and water spraying, for waterproof performance testing and IP waterproof rating test.
The machine uses the artificial simulated rainfall environment to test the waterproof ability of the tested products according to the international standard requirements; it is designed and manufactured in accordance with IEC60529: 2001 "Degrees of security provided by enclosures (IP Code)", GB4208-2008 "Enclosure protection class (IP code)" 14.2.5, 14.2.6 terms and Figure 6 and GB7000.1 "lamps first part: general Requirements and tests "9.2.6, 9.2.7 and Figure 9.5 requirements.
For the IP56 series, it’s suitable for electrical products for the second feature number 5 and 6 (IPX5 and IPX6) Rain test.
Model | ZH-IP56-800 |
Specification | |
Inner size | W800*H800*D800mm (512L) |
External size | W3650*H1750*D1300mm appr. |
Spray hole diameter | IPX5: 6.3mm, IPX6: 12.5mm |
Turntable speed | 1-9RPM (adjustable) |
Turntable diameter | 500mm |
IPX5 water flow rate | 12.5L±0.625L/min |
IPX6 water flow rate | 100L±5L/min |
Spray pressure | 50kpa~100kpa |
Spray distance | 2.5~3 m |
Conforms to standard | GB4208, IEC60529, GB10485 and other standards |
Control system | The hardware architecture adopts: PLC listed company Xinjie+MCGS 7-inch human-machine interface touch screen; The software is independently developed by Sailham (with strong scalability and the ability to customize non-standard software according to requirements); Flat design, easy to operate. |
Features | |
Material | (1) The inner boxes and water tank are all made of SUS304 stainless steel plate, with low and full indication. The turntable is made of stainless steel, and the test box door is a single door with a left opening, equipped with a large observation window, and equipped with a wiper brush. (2) The outer box is made of cold-rolled steel plate and baked with paint. |
Power cord holes and drainage holes | Located on the back of the machine |
