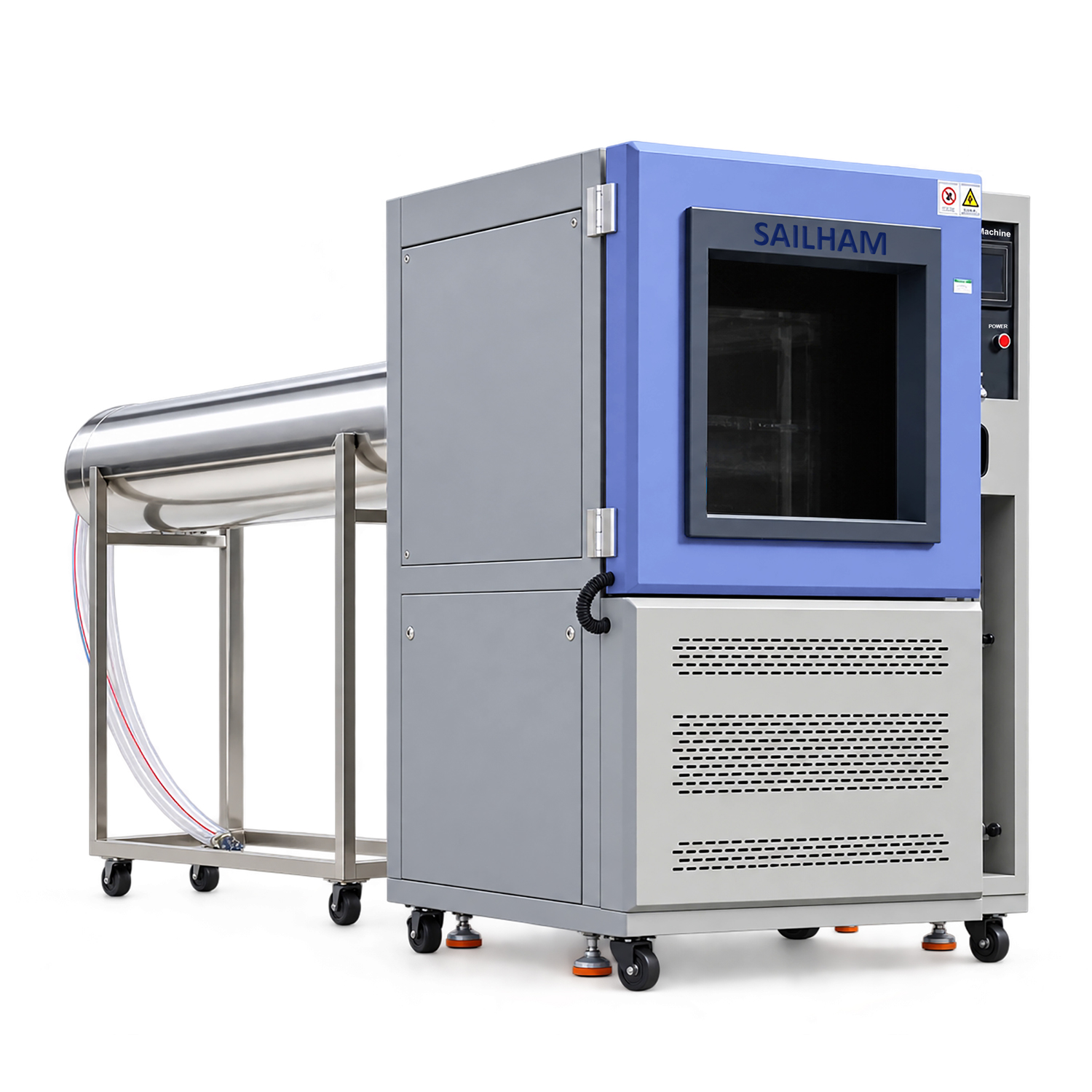

IPX1/2/3/4/5/6 Water Proof Test Chamber Rain Test Cabinet For Industrial Instrument

Telephone:+86 13018663273 Mail:carleen@sailham.com

[prev:IPX3/4/5/6 Rain Spray Test Chamber Water Test Machine Environmental Testing Chamber] [next:null]

Detail

The waterproof test chamber (Rain spray test chamber) uses the artificial simulated rainfall environment to test the waterproof ability of the tested products according to the international standard requirements; It is suitable for testing electrical products, enclosures and seals to ensure good performance of equipment and components in a rainy environment.

Equipped with a built-in water tank, the water tank is equipped with a water level float ball valve to automatically control the water inlet, and has a low water level alarm monitoring to effectively prevent the water pump from being damaged due to water shortage. The scientific design of this product enables the device to realistically simulate various environments such as dripping, watering, splashing, and water spraying, for waterproof performance testing and IP waterproof rating test.

It is designed and manufactured in accordance with IEC60529: 2001 "Degrees of security provided by enclosures (IPX1~X6)", GB4208-2008 "Enclosure protection class (IP code)" 14.2.5, 14.2.6 terms and Figure 6 and GB7000.1 "lamps first part: general Requirements and tests "9.2.6, 9.2.7 and Figure 9.5 requirements.

1. Sizes optional (other bigger sizes can be customized)
1.1. Inner size (mm) Volume: L		600 x 600 x 600 (216L)	800 x 800 x 800 (512L)	1000 x 1000 x 1000 (1000L)
1.2. External size (mm) appr.		W1100H1580D900	W1310H1800D1150	W1510H1910D1230
1.3. Swing tube radius		R200 mm	R300 mm	R400 mm
1.4. Turntable diameter		250 mm	400 mm	500 mm
1.5. IPX1/2 dripping area		400*400 mm	600*600 mm	800*800 mm
2. Specification for IPX1, IPX2 Test (Dripping rain test)
2.1. Water flow rate		IPX1: 1.0+0.5mm/min; IPX2: 3.0+0.5mm/min
2.2. Dripping hole diameter		φ0.4MM
2.3. Turntable can be tilted (After tilting the turntable, there is a slot that can be easily fixed at 15 degrees)		0 ° (horizontal direction for IPx1) or 15 ° (for IPx2)
2.4. Hole spacing		20 x 20 mm
2.5. Water flow rate		IPX1: 1.0+0.5mm/min; IPX2: 3.0+0.5mm/min
3. Specification for IPX3, IPX4 Test (Rain spray test)
3.1. Water pipe diameter		Φ20mm
3.2. Spray hole diameter		Φ0.4mm
3.3. Height of turntable		Adjustable
3.4. Turntable speed		1-9RPM (adjustable)
3.5. Swing tube angle		60 °, 90 °, 120 °, 180 ° (adjustable), stepper motor control
3.6. Spray pressure		50kpa~100kpa
4. Specification for IPX5, IPX6 Test (high-pressure water jets)
4.1. IP56 nozzle	IPX5: 6.3mm, IPX6: 12.5mm
4.2. IPX5 water flow rate	12.5L±0.625L/min
4.3. IPX6 water flow rate	100L±5L/min
4.4. Spray pressure	50kpa~100kpa
4.5. Spray distance	2.5~3 m
5. Conforms to the test standards	GB/T 4208-2017 Degrees of protection provided by enclosures (IP code) IEC 60529:2013 Degrees of protection provided by enclosures (IP Code) GB10485 Road vehicles-Lighting and light-signalling devices-Environmental endurance etc.
6. Control system	The hardware architecture adopts: PLC + 7-inch human-machine interface touch screen; The software is independently developed by Sailham (with strong scalability and the ability to customize non-standard software according to requirements);
7. Safety protection device	Power short circuit overload protection, water tank shortage protection, motor overcurrent protection
8. Structure & Material
8.1. Material		(1) The inner boxes and water tank are all made of SUS304 stainless steel plate, with water level low and full indication. The turntable is made of stainless steel (2) The outer box is made of cold-rolled steel plate and baked with paint.
8.2. Door		A single door with a left opening, equipped with a large observation window, and equipped with a wiper brush.
8.3. Power cord holes and drainage holes		Located on the back of the machine
