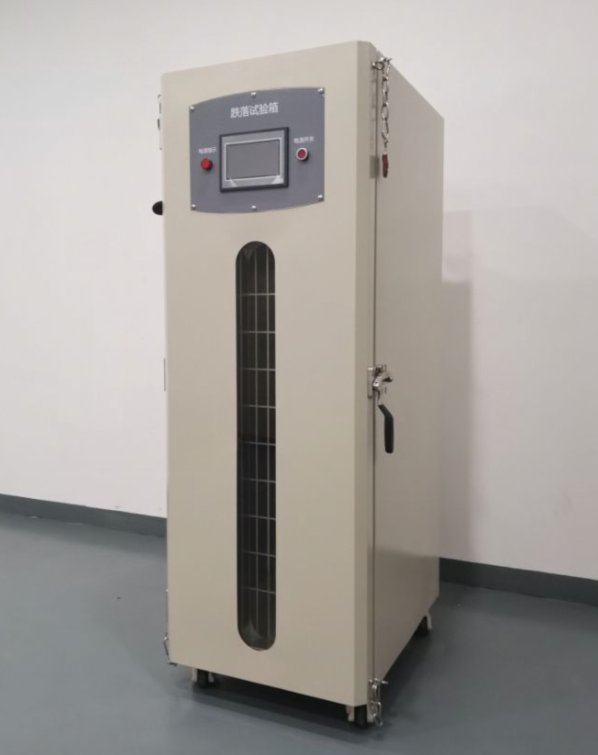

Battery Drop Test Chamber ZH-CD-150

Battery Drop Test Chamber

ZH-CD-150

1. Overview.

The battery drop test machine is suitable for 3C portable batteries, single cell batteries, cylindrical batteries, soft pack batteries, square batteries, mobile phones (mobile phones), intercoms, electronic dictionaries, and building intercom phones, CD/MD/MP3, Free fall testing of small consumer electronic products and components.

2. Features.

This machine adopts a pneumatic structure. The test piece is placed in a special fixture (adjustable stroke) and clamped firmly. When the drop button is pressed, the cylinder is released, and the test piece will undergo a free fall test. The drop height can be adjusted up and down, and a height scale is attached to determine the drop height of the test piece. Multiple drop landing plates are available for selection to meet different test standards.

3. Applicable standards.

GB31241-2014 "Safety Requirements for Lithium ion Batteries and Battery Packs for Portable Electronic Products"

UN38.3 Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria, Part 3

UL 1642 "Lithium Battery Standard"

UL 2054 "Household and Commercial Battery Pack"

GB-18287-2000 "Specification for lithium-ion batteries for cellular phones"

SJ-11169-1998 "Lithium Battery Standard"

YD-1268-2003 "Safety Requirements and Test Methods for Lithium Batteries and Chargers in Mobile Communication Handheld Devices"

SJ/T 11170-1998 "Safety Standards for Household and Commercial Batteries"

GB 8897.4-2002 "Primary batteries - Part 4: Safety requirements for lithium batteries" and other testing standards.

4. Main technical parameters:
