Temperature Humidity and Vibration Test Machine Programmable THV Test System for New Energy Components

Telephone:+86 13018663273 Mail:carleen@sailham.com

[prev:High Low Temperature and Low Pressure Environmental Test Chamber] [next:Temperature Humidity Vibration Combined Test Chamber]

Detail

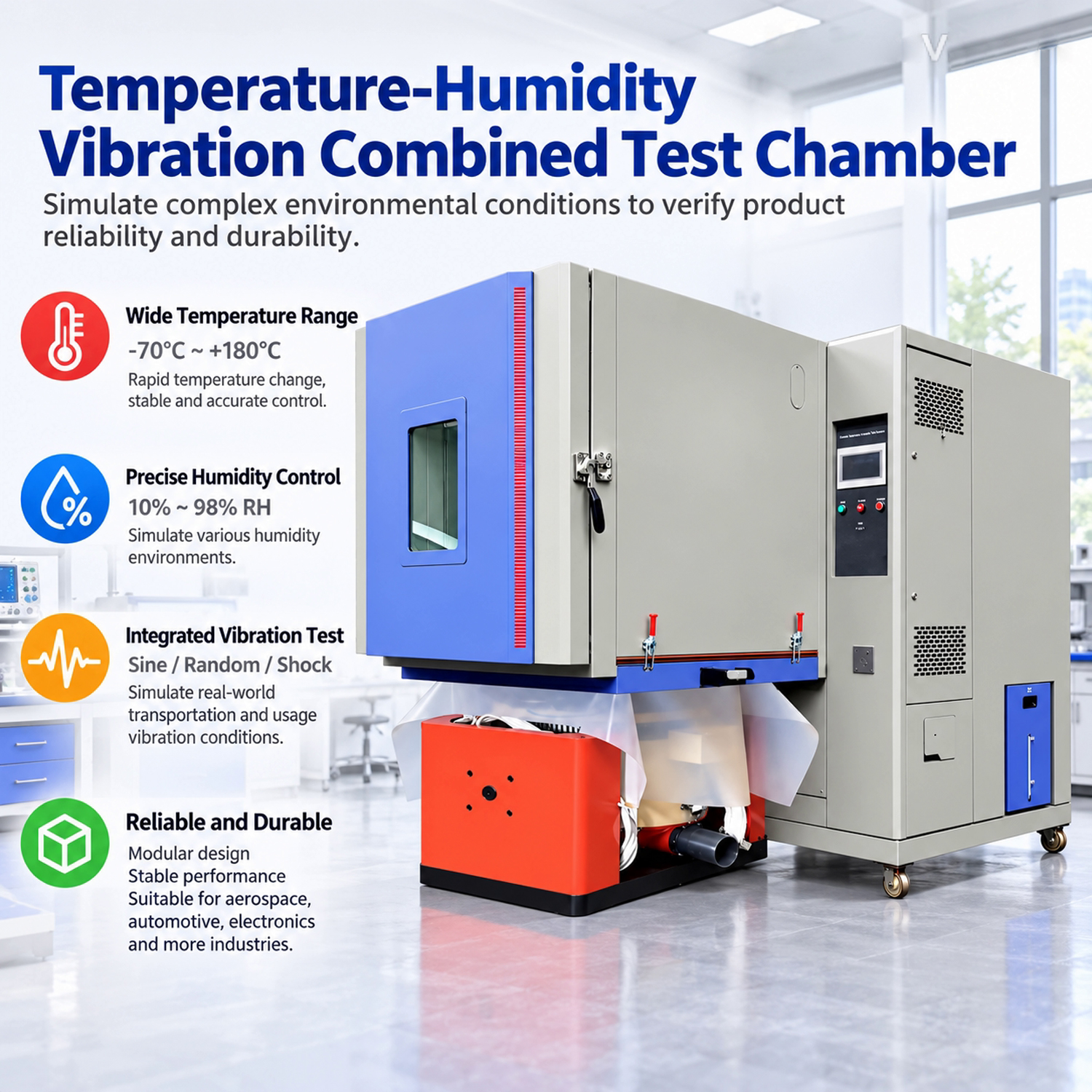

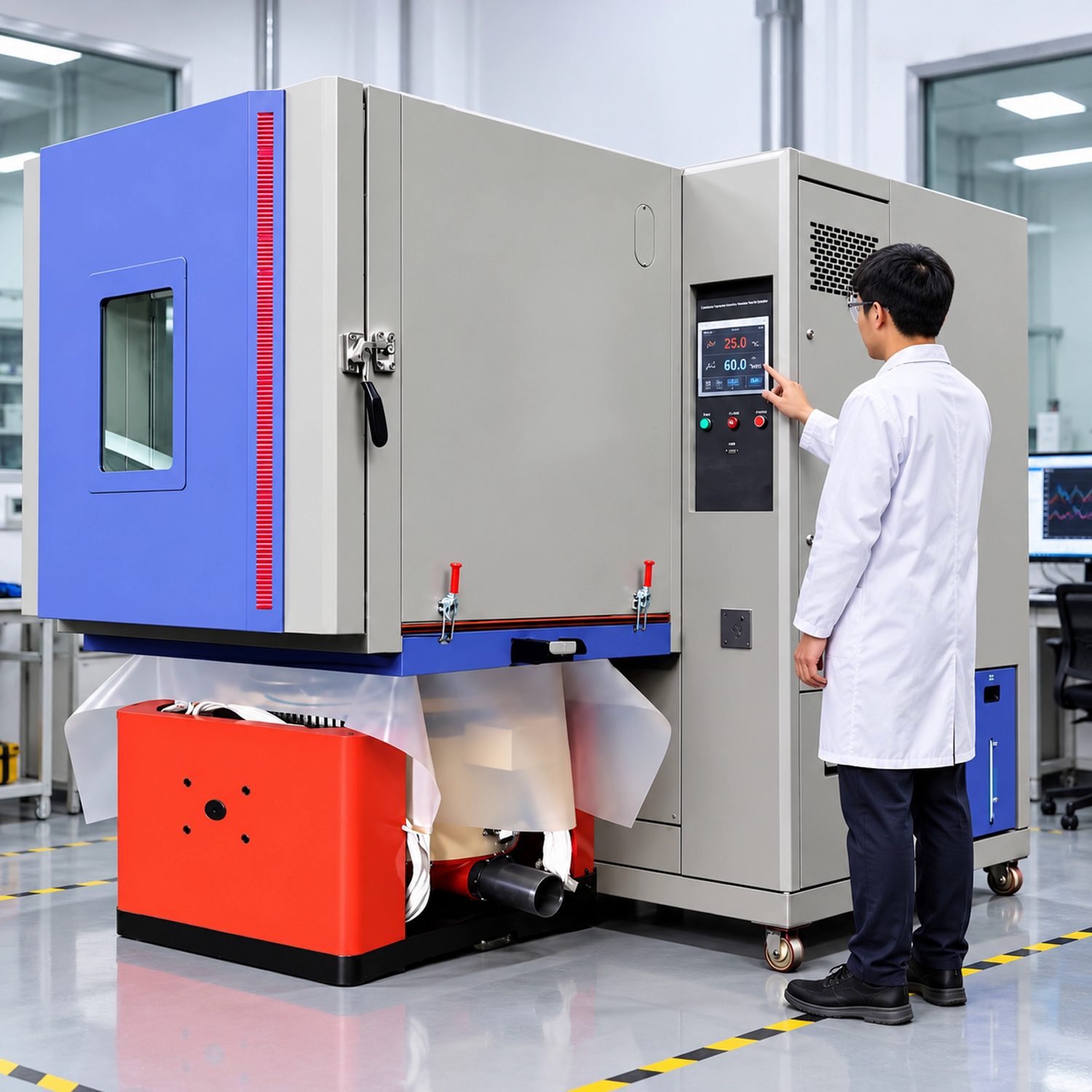

Temperature humidity and Vibration test chamber

Temperature and humidity vibration three comprehensive testing machine is widely used in defense, aviation, aerospace, reading, electronics, automotive, home appliances, equipment and other industries, the type of equipment used to find early detection failure, mold simulation in high temperature, low temperature, humidity, And vibration for the environment storage, transportation, the actual situation assessment and structural strength test, a wide range of equipment applications, the test results are significant and reliable. Sine wave, adjustable Shanghai, programmable, multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full-featured computer control, simple set acceleration / fixed amplitude. The equipment is tested by continuous trouble-free operation for 3 months, with stable performance and reliable quality

Meet the standard
GB/T 2423.1-2008, GB/T 2423.2-2008, GB/T 2423.3-2006, GB/2423.10-99, JJG190-97

Model	ZH-ZTH-225	ZH-ZTH-408	ZH-ZTH-800	ZH-ZTH-1000
Inner Size W×h×d(mm)	500x750x600	600x850x800	1000x1000x800	1000x1000x1000
Performance index	High temp range	150℃/200℃(Special purchase)
	Low temp range	A:0℃ B:-20℃ C:-40℃ D-60℃ E:-70℃ F:-90℃(Special purchase)
	Humidity range	20~98%Rh (10%~98R.H;5%~98%R.H;5%~98%R.H are projects to purchase;need to add dehumidifier)
	Heating rate	1.0~4.0℃/min, 5℃~15/min(Special purchase)
	Cooling rate	0.7~1.2℃/min, 5℃~15/min((Special purchase)
	Temp fluctuations	±0.5℃
	Humidity fluctuations	±2.0%RH
	Temp deviation	±2℃
	Humidity deviation	±3.0%RH
	Vibration force	Reference Electromagnetic Vibration Test System Selection Calculation Index

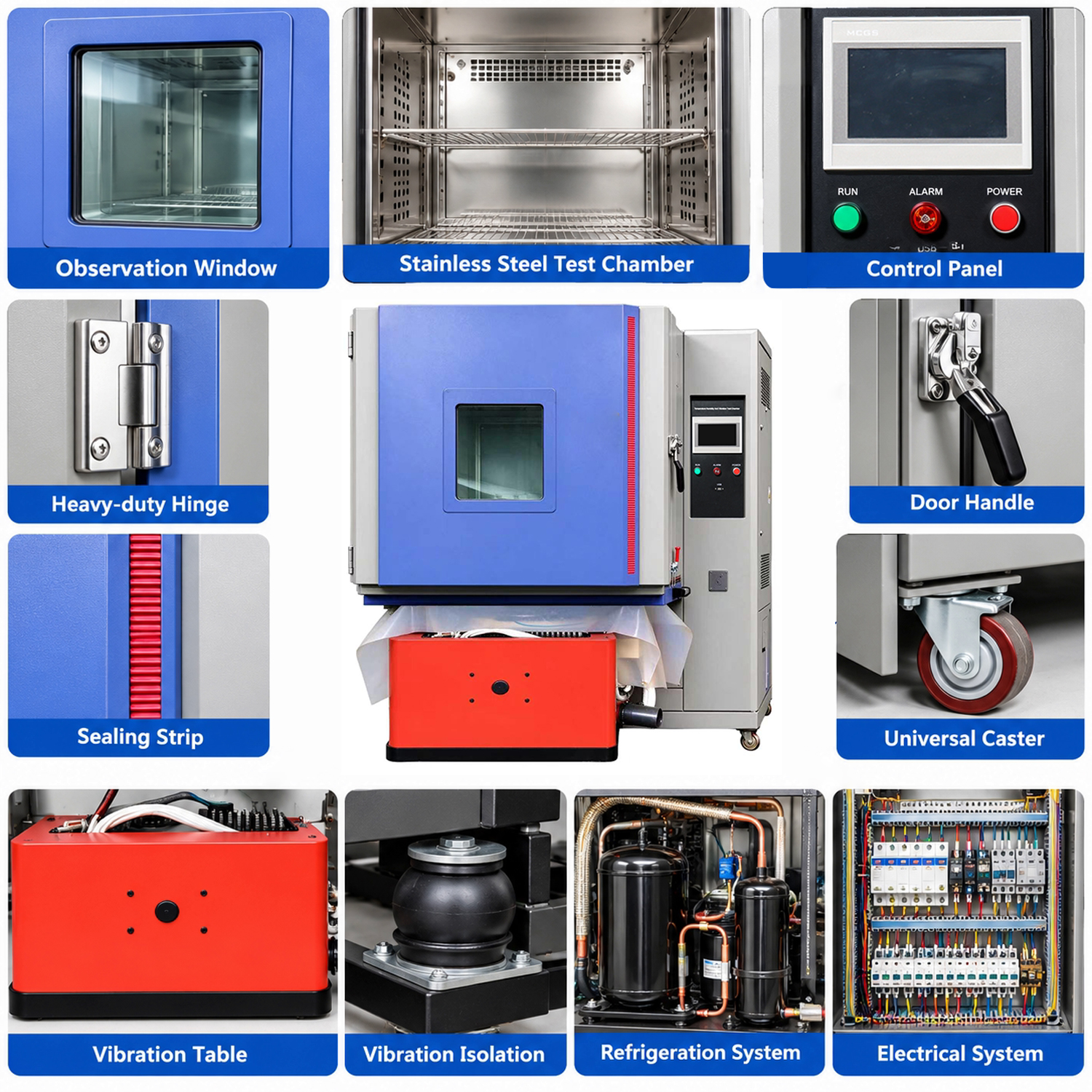

Material	Inner box	SUS#304 stainless steel
	External box	galvanized steel, surface spray or SUS304 stainless steel
	Heat preservation	Rigid polyurethane foam + glass fiber insulation
System	Heater	Spiral Nickel Chrome Alloy Heater + Insulated Ceramic Bracket
	Humidifier	Nickel - chromium alloy electric - type embedded humidifier
	Cooling System	Fully enclosed compressor (France / Taikang)
	cooling method	Air-cooled or water-cooled
	Refrigerant	R404A / R23 international environmental protection refrigerant
	Controller	Original imported 7-inch TFT color LCD in the British page touch controller
Actuating device	Hydraulic control automatically lift left and right drive
Fittings	Lead hole: Φ50mm 1 / no embroidery sus # 304 board rack (two) / USB interface 1
Power supply	AC220 ±5%V / 50±0.5Hz / Single-phase 3 wire; AC380±5%V/50±0.5Hz / Three-phase 5 wire
Using environment temp and humidity	Temperature: 5 ℃ ~ 30 ℃ Relative humidity ≤ 85%
