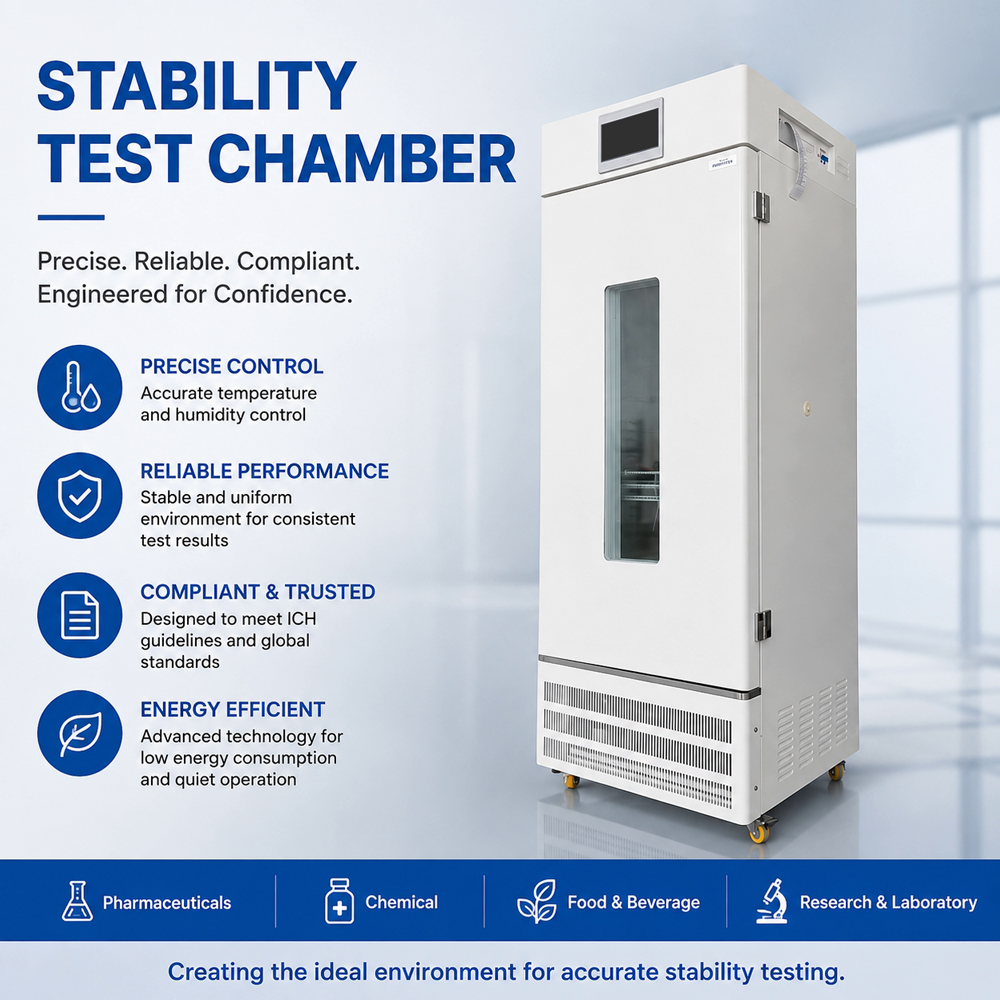

High Precision Comprehensive Temperature Humidity Stability Test Chamber

1. Product Features:

1.1. The chamber is made of high-pressure polyurethane molding, which has excellent insulation performance and is sturdy and reliable.

1.2. The exterior of the chamber is treated with high-quality cold-rolled steel plate spray coating, and the interior is made of 304 stainless steel liner. The spacing between the shelves inside the chamber is adjustable.

1.3. Using branded compressors and environmentally friendly fluorine free refrigerant (R134a), high efficiency, low energy consumption, energy-saving and environmentally friendly.

1.4. Microcomputer PID control, precise and reliable temperature control, minimal fluctuations, with timing function.

1.5. SMOOTH's overall air duct uniformity system provides more precise temperature control.

1.6. Independent temperature limit alarm system, dual temperature limit protection (± 4 ℃ and upper limit 70 ℃), automatically interrupts when the temperature limit is exceeded.

1.7. Standard embedded needle printer and USB data storage, real-time printing of temperature and humidity data and collection of chamber operation data, with traceable records, meeting the data management requirements of pharmaceutical factories.

1.8. Programmable 7-inch color touch screen controller, standard configuration: GMP Level 3 permission management system, audit tracking system.

1.9. There is a 30mm diameter test hole on the left side of the chamber for easy experimental operation and temperature measurement.

1.10. Self diagnostic function, automatic monitoring of faults throughout the process, and intuitive indication of fault codes.

1.11. Adopting a balanced control mode, the humidifier adopts a thermal humidification method for more precise humidity control.

1.12. Standard internal circulation water supply system, condensate can be recycled and reused.

1.13. The humidity control range can be controlled within (20% RH) and the humidity deviation can be controlled within (± 3% RH) by upgrading the refrigeration system (optional)

2. Technical Specifications:

2.1. Models optional

Model

ZH-HS100S

ZH-HS150S

ZH-HS250S

ZH-HS325S

ZH-HS400S

ZH-HS500S

ZH-HS800S

ZH-HS1000S

Inner size (cm) W*D*H

45*43*53

45*43*78

50*48*103

54*55*110

60*60*114

108*49*100

120*55*108

120*67*114

Volume (L)

100

150

250

325

400

500

800

1000

External size (cm) W*D*H

52*52*118

52*52*143

57*57*168

61*64*176

67*69*180

115*65*170

127*71*178

127*83*184

Power (W)

587

687

688

689

689

1246

1698

1698

Load carrier (standard)/pc

3

3

4

4

4

6

10

10

2.2. Temperature control range

Without light exposure at 5-65 ℃/ with light exposure at 15-65 ℃

2.3. Temperature resolution

0.1

2.4. Temperature fluctuation

±0.5℃

2.5. Temperature deviation

±1.0℃

2.6. Humidity control range

35 % RH~95% RH

2.7. Humidity resolution

0.1

2.8. Humidity fluctuation

±2.0%R.H.

2.9. Humidity deviation

±5.0%R.H.

2.10. Illuminance of light source

0~10000 Lux

2.11. Light source illumination deviation

±500 Lux

2.12. UV irradiance of light source

80~200μw/cm²

2.13. UV spectral range of light source

320~400nm

2.14. Refrigerant

R134a

2.15. Power supply voltage

Power supply AC220V ± 10% 50Hz ± 1Hz

※ Note:

● The performance parameter test under no-load conditions is: ambient temperature of 20 ℃, ambient humidity of 50% RH
