1.Function
Ventilation aging test chamber is suitable for heat resistance test of electrical insulating materials, electronic parts, accessories, and plasticized products, etc.; to assess and judge its adaptability for storage and use under high temperature environmental conditions, The performance was measured after aging in the air under simulated high temperature and atmospheric pressure and compared with the performance of unaged samples.
2.Test Standard
Comply with the standard GBT 3512-2014/ISO 188:2011 Rubber, Vulcanized or thermoplastic - Accelerated aging and heat resistance tests.
Method B: Use a cabinet-type hot air aging box with forced ventilation with a fan, with 3-10 air changes per hour or other
non-standard air changes, etc.
3.Ventilation system
1)Ventilation: 3-10 times per hour;
2)Configure the power meter for testing when ventilating and when not ventilating;
3)Ventilation using adjustable duct control, manually adjust the amount of the fresh air;
4)Manually adjustable air flow duct, located at the top of the machine; (exhaust must be discharged to the outside)
5)Ventilation method: natural intake and exhaust.
4.Circulating air supply system
1)Air supply mode: internal hot air circulation;
2)Motor is a special type of long high-temperature resistant axis, power 370W/220V;
3)Wind turbine is multi-wing turbine type 7.5 inch;5.Power supply device
1)Voltage AC 220V, 50/60HZ, 1 phase (customized)2)Current 16A3)Power 3.5KW
Inner size | 450 (width) × 450 (depth) × 500 (height) mm ± 5 |
External size | 1150 (width) × 710 (depth) × 1520 (height) mm |
Operation panel | control panel is located on the right side of the machine |
Open the door | to open a single door from right to left |
Observation window | door with tempered glass window, size: W200 * H250mm |
Inner material | 304 # stainless steel sand plate: 1.2mm in thickness |
External material | cold-rolled steel plate, 1.0mm in thickness with powder paint treatment; (off-white) |
Product material shelves | Turntable: a set of two built-in turntables with a diameter of 300mm, can be removable. |
A set of speed motor, speed 3-10 RPM adjustable |
Insulation material | high temperature resistance fiber rock wool, with good insulation effect |
Door seal material | high temperature silicone bar |
Machine with four activities casters and fixed feet, movable or fixed. |
Temperature control system |
Temperature control | PID digital display instrument, single-point temperature control, automatic calculation, PV/SV simultaneous display, with key setting |
Timing function | 1-9999 (hours, minutes, seconds) temperature to time, time to stop heating power supply, and to alarm at the same time; |
Temperature sensor | line (K) type |
Output | 3-32V |
Current controller | SSR solid state relay |

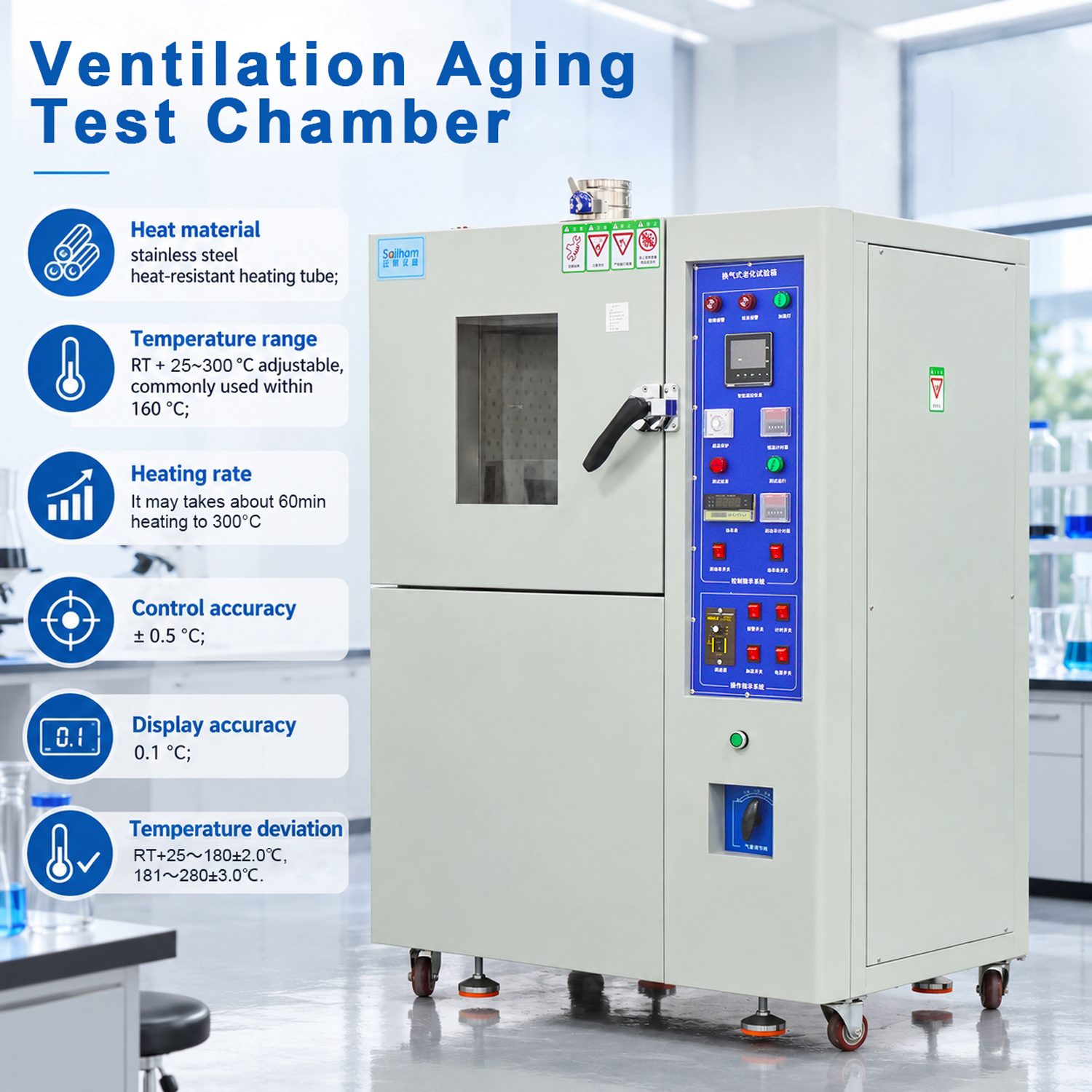

Heat material | stainless steel heat-resistant heating tube |
Temperature range | RT +25 ~ 300 °C adjustable, commonly used within 260 degrees |
Heating rate | It may takes about 60min heating to 300°C |
Control accuracy | ± 0.5 °C |
Display accuracy | 0.1 °C |
Temperature deviation | RT+25～180±2.0℃, 181～280±3.0℃. (No-load test) |
