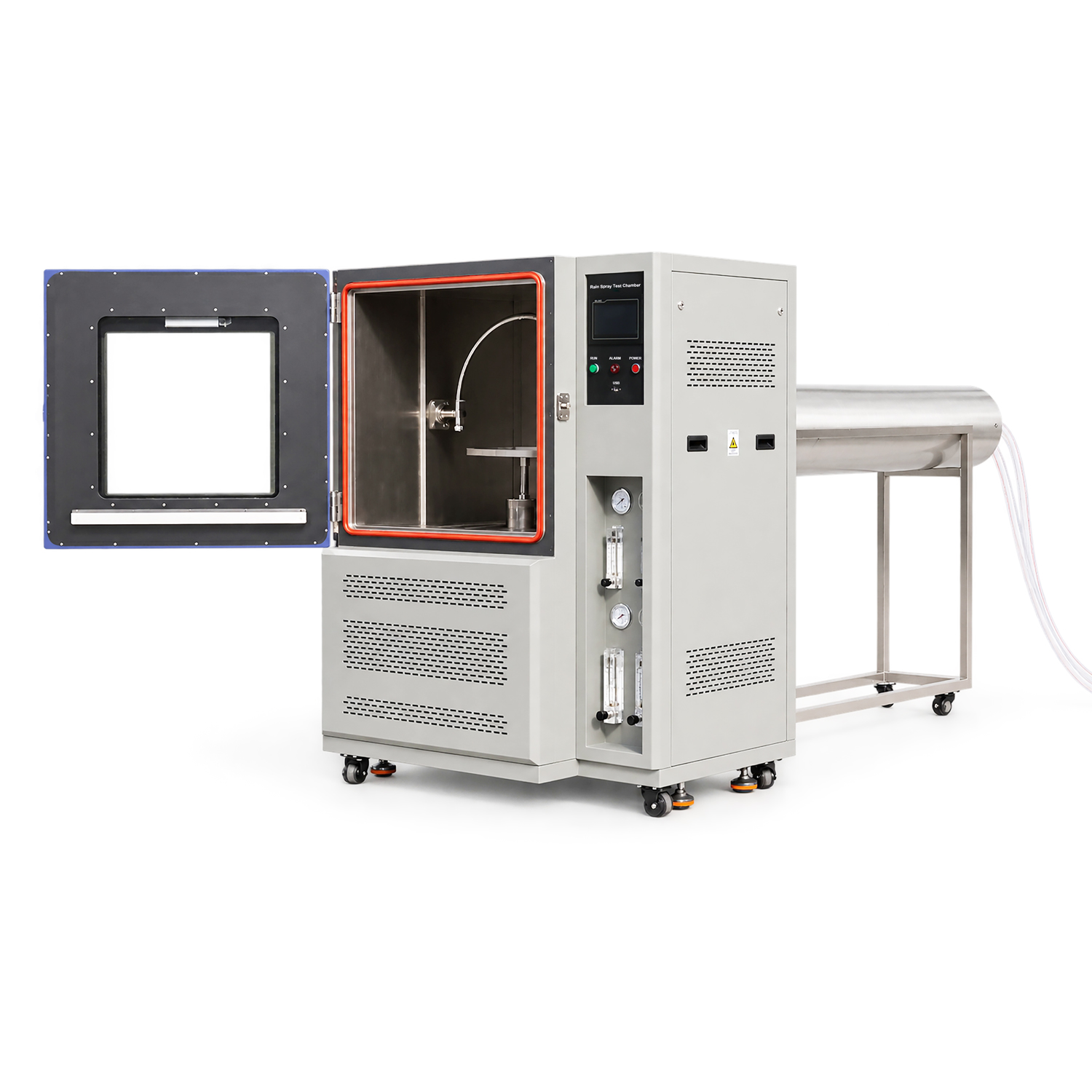

IPX3/4/5/6 Rain Spray Test Chamber For Waterproof Testing
Telephone:+86 13018663273
Mail:carleen@sailham.com
|
The waterproof test chamber (Rain spray test chamber) uses the artificial simulated rainfall environment to test the waterproof ability of the tested products according to the international standard requirements; It is suitable for testing electrical products, enclosures and seals to ensure good performance of equipment and components in a rainy environment.
Equipped with a built-in water tank, the water tank is equipped with a water level float ball valve to automatically control the water inlet, and has a low water level alarm monitoring to effectively prevent the water pump from being damaged due to water shortage. The scientific design of this product enables the device to realistically simulate various environments such as dripping, watering, splashing, and water spraying, for waterproof performance testing and IP waterproof rating test.
It is designed and manufactured in accordance with IEC60529: 2001 "Degrees of security provided by enclosures (IPX3~X6)", GB4208-2008 "Enclosure protection class (IP code)" 14.2.5, 14.2.6 terms and Figure 6 and GB7000.1 "lamps first part: general Requirements and tests "9.2.6, 9.2.7 and Figure 9.5 requirements.
Sizes optional (other bigger sizes can be customized) | ||||
Inner size (mm) Volume: L | 600 x 600 x 600 (216L) | 800 x 800 x 800 (512L) | 1000 x 1000 x 1000 (1000L) | |
External size (mm) appr. | W1100*H1580*D900 | W1310*H1800*D1150 | W1510*H1910*D1230 | |
Swing tube radius | R200 mm | R300 mm | R400 mm | |
Turntable diameter | 250 mm | 400 mm | 500 mm | |
2. Specification for IPX3, IPX4 Test (Dripping rain) | ||||
Water pipe diameter | Φ20mm | |||
Spray hole diameter | Φ0.4mm | |||
Height of turntable | Adjustable | |||
Turntable speed | 1-9RPM (adjustable) | |||
Swing tube angle | 60 °, 90 °, 120 °, 180 ° (adjustable), stepper motor control | |||
Spray pressure | 50kpa~100kpa | |||
Specification for IPX5, IPX6 Test (high-pressure water jets) | ||||
IP56 nozzle | IPX5: 6.3mm, IPX6: 12.5mm | |||
IPX5 water flow rate | 12.5L±0.625L/min | |||
IPX6 water flow rate | 100L±5L/min | |||
Spray pressure | 50kpa~100kpa | |||
Spray distance | 2.5~3 m | |||
Conforms to the test standards | GB/T 4208-2017 Degrees of protection provided by enclosures (IP code) IEC 60529:2013 Degrees of protection provided by enclosures (IP Code) GB10485 Road vehicles-Lighting and light-signalling devices-Environmental endurance etc. | |||
Control system | The hardware architecture adopts: PLC + 7-inch human-machine interface touch screen; The software is independently developed by Sailham (with strong scalability and the ability to customize non-standard software according to requirements); | |||
Safety protection device | u Power short circuit overload protection u Water tank shortage protection u Motor overcurrent protection | |||
Structure & Material | ||||
Material | (1) The inner boxes and water tank are all made of SUS304 stainless steel plate, with water level low and full indication. The turntable is made of stainless steel (2) The outer box is made of cold-rolled steel plate and baked with paint. | |||
Door | A single door with a left opening, equipped with a large observation window, and equipped with a wiper brush. | |||
Power cord holes and drainage holes | Located on the back of the machine | |||
