IP56 Water Jetting Spray Test Chamber Water Resistance Testing Machine

Rain spray test chamber dedicated to IPX5 and IPX6 waterproof rating tests for electrical products, enclosures and seals. It is scientifically designed to realistically simulate high-pressure water jet environments, verifying the waterproof performance of tested products to ensure their stable operation in rainy or water-splashing working conditions, and is widely applicable to the quality detection of electronic and electrical equipment in various industries.

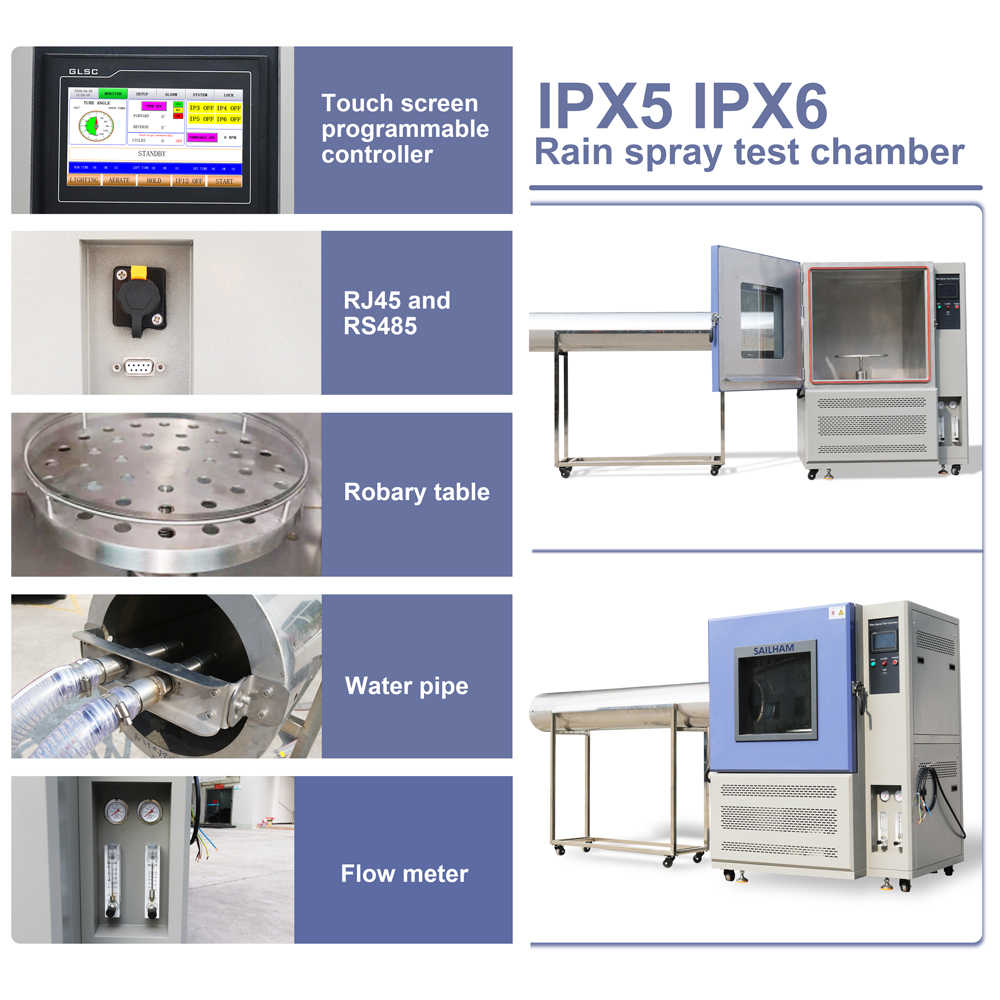

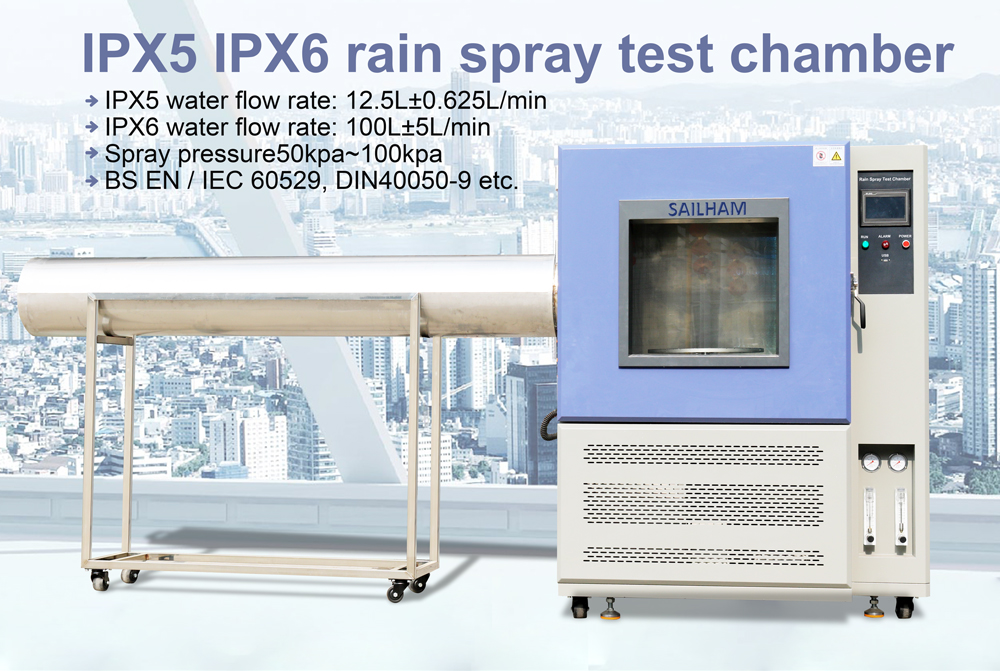

In terms of core specifications, the chamber has an inner size of 800*800*800mm (512L) and an approximate external size of 3650*1750*1300mm, providing a spacious and independent test space for samples of different sizes. It is equipped with dedicated nozzles for IPX5 and IPX6 tests, with spray hole diameters of 6.3mm and 12.5mm respectively, and precise control of key test parameters: IPX5 water flow rate is 12.5L±0.625L/min, IPX6 water flow rate reaches 100L±5L/min, spray pressure is stably maintained at 50kpa~100kpa, and the standard spray distance is set at 2.5~3m, fully meeting the high-pressure water jet test requirements of IPX5 and IPX6 grades. The device is configured with a 500mm-diameter stainless steel turntable with adjustable speed of 1-9RPM, which drives the sample to rotate evenly during the test, ensuring all surfaces of the sample are fully sprayed with water and the test results are comprehensive and accurate.

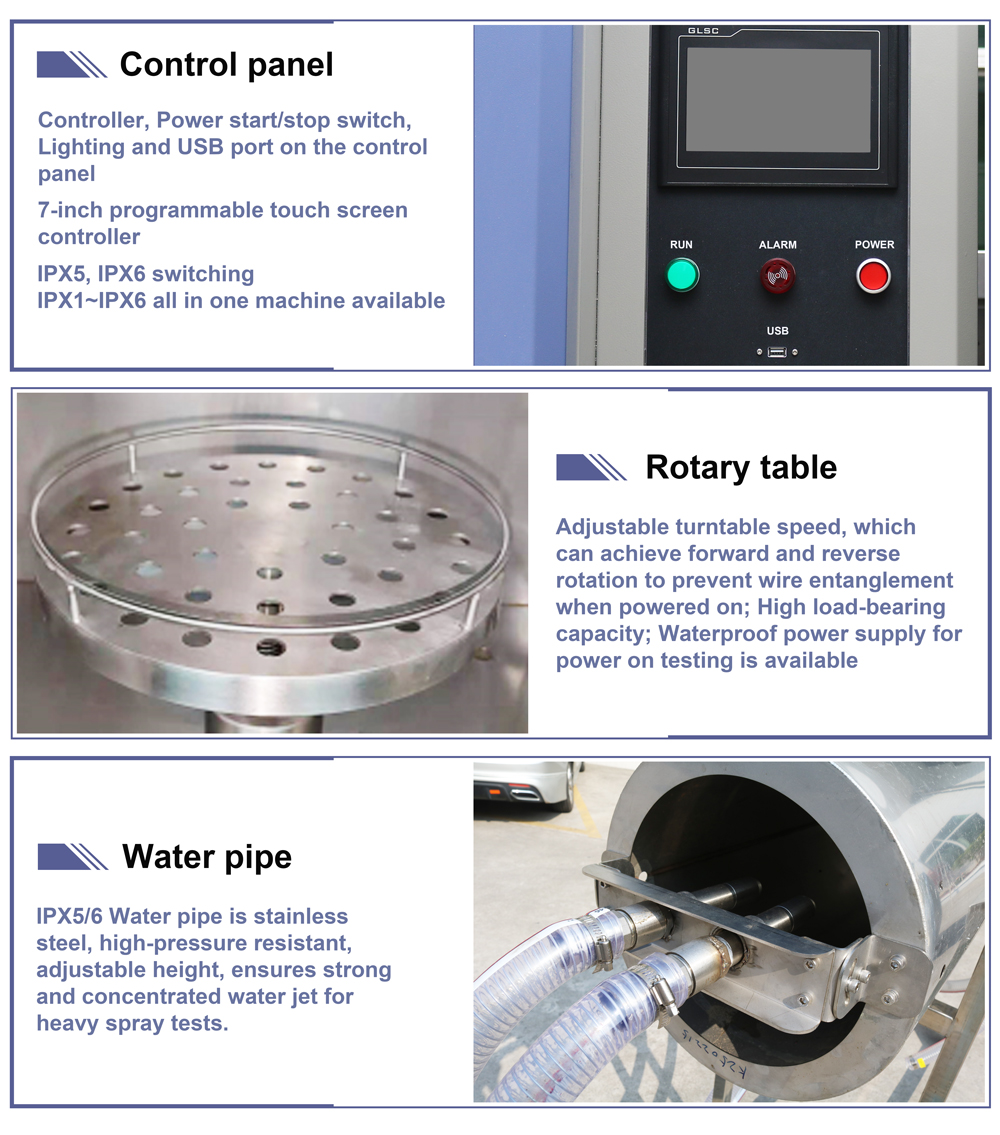

The chamber is designed and manufactured in strict accordance with international and national standards including IEC60529:2001, GB4208-2008 and GB10485, with its test data recognized in the industry and able to support product certification and quality inspection. Its control system adopts a high-quality hardware combination of Xinjie PLC and MCGS 7-inch human-machine interface touch screen, matching Sailham's independently developed software with strong scalability and supporting non-standard function customization according to customer needs. The flat design of the control panel makes operation simple and intuitive, and an English-only language panel is available, adapting to the use habits of global customers.

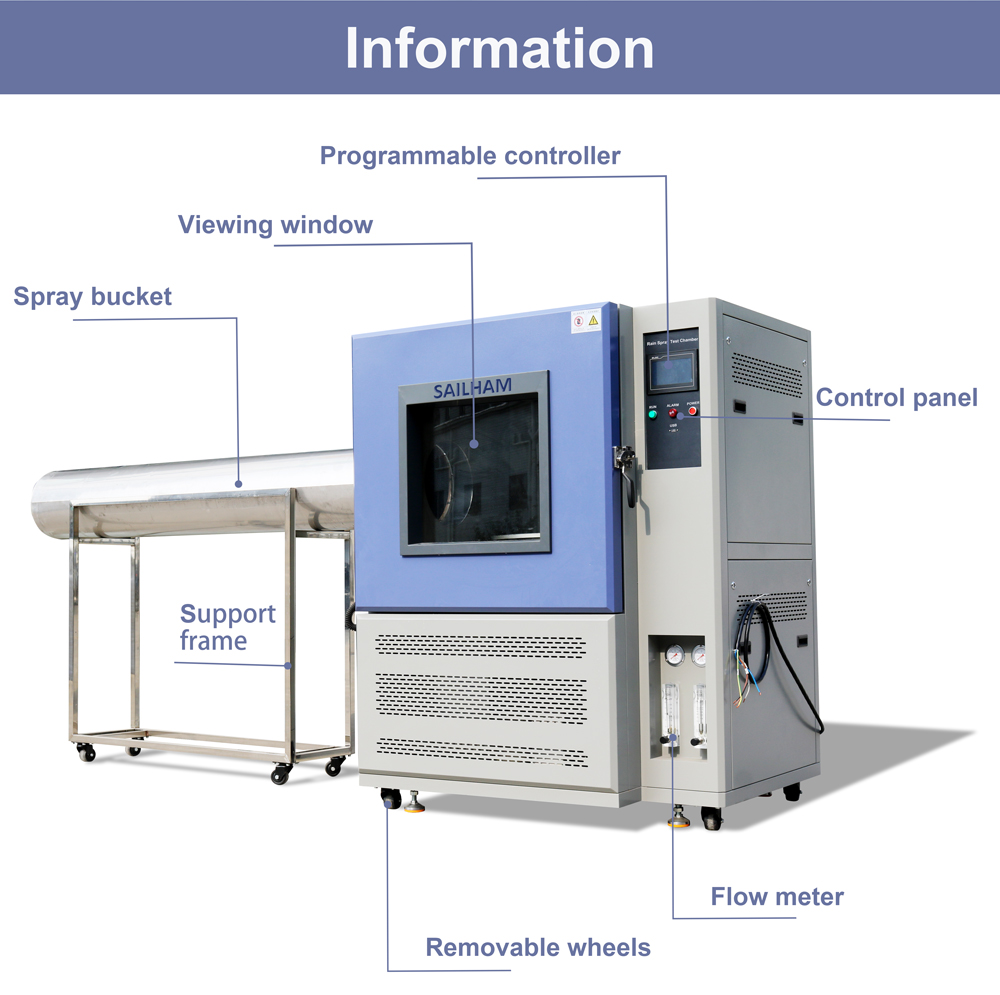

In structural design and material selection, the product adheres to high-quality and durable principles: the inner box and water tank are made of SUS304 stainless steel plate with liquid level indication, and the turntable also uses stainless steel material, which has excellent corrosion resistance and water resistance, avoiding equipment damage caused by long-term contact with water and easy to clean and maintain. The outer box is made of cold-rolled steel plate with spray painting, with a firm and beautiful appearance and strong anti-collision ability. The test box is designed with a left-opening single door, equipped with a large observation window and a wiper brush, which is convenient for real-time observation of the sample test status without opening the door and affecting the test environment. Power cord holes and drainage holes are reasonably arranged at the back of the machine, facilitating wiring and water discharge and keeping the test site tidy.

The core accessories of the chamber are all selected from well-known brands at home and abroad, including Schneider's AC contactor, intermediate relay and overload protector from France, MEANWELL's switching power supply, SHIMGE's water pump and PUFEIDE's turntable motor, ensuring the stable and reliable operation of the whole machine with low failure rate. The equipment has low power consumption, with a power of only 3.5KW and a maximum current of 7A, and adapts to AC380±10%V three-phase power supply, with strong voltage adaptability. Its use environment requirements are moderate, suitable for working at +5℃~35℃ ambient temperature and ≤85% relative humidity, and supports manual and automatic water supply (purified water is recommended), with simple and convenient daily use.

Sailham provides a comprehensive and thoughtful after-sales service for this product: professional technical personnel offer on-site or telephone installation guidance, and free operation and maintenance training with basic catering and accommodation for purchasers. After receiving customer service requirements, solutions are provided within 24 hours (considering time difference); the product enjoys a one-year free warranty for quality problems, and lifelong maintenance service is provided, with a sufficient supply of accessories and wearing parts. As a leading manufacturer of environmental test chambers, Sailham has passed ISO9001:2015 certification, and its products have obtained CE, RoHS and FCC international certifications, with reliable quality and brand strength, making the IP56 rain spray test chamber a reliable choice for enterprises to carry out waterproof performance testing.
