Zero Drop Test Machine

The zero drop test table adopts the plate double guide rail, electric or hydraulic lifting system, it’s suitable for the packaging test in larger size. It is convenient and fast for loading and unloading and achieve the edge, surface, angle lower height drop test; drop height can start from zero; this device has a stop alarm, low pressure alarm that can not start and other safety warning functions.

Telephone:+86 13794880254 Mail:carleen@sailham.com

[prev:Simply supported beam impact testing machine] [next:null]

Detail

Zero drop testing machine

ZH-ZD-1200

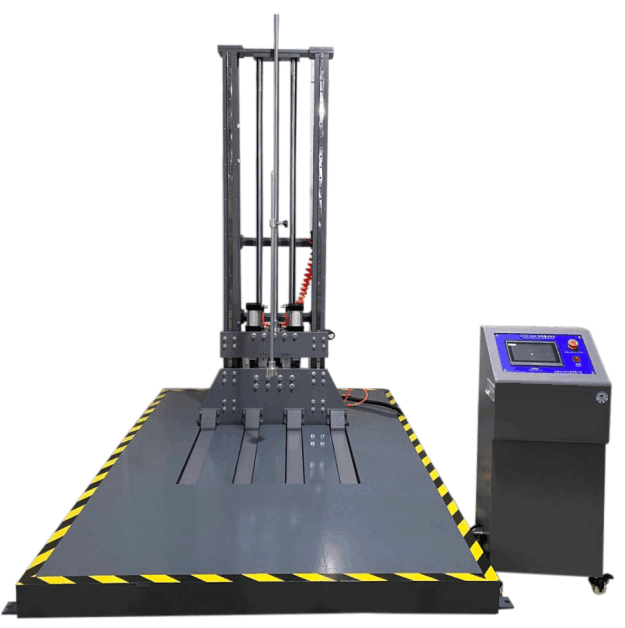

Zero drop tester.png

1. Main technical parameters.

Main technical parameters for zero drop test machine.
Drop height	0 ~ 1500mm adjustable
Maximum weight of specimen	100Kg or customized
Maximum size of specimen	1000 × 1200 × 1600 mm, or customized
Testing part	Edge, angle, face
Floor plate size	15001500mm (for reference)
Motor	≤3kw
Machine dimensions	155021001550mm (for reference)
Driving mode	Motor drive up, pneumatic drop, 45# chrome steel
Protective device	Up and down induction-type protection device
Impact plate material	45 # steel, solid steel plate, thickness of 120mm
Height display	Touch screen display, and can set the height of the shutdown function
Arm structure	45 # steel, made by welding
Drop mode	Solenoid valve and pneumatic integrated
Drop height mark	Benchmark mark
Drop height error	≤±5mm
Power suplly	380V,7.5KW
Power source	Pneumatic
Remark	Other test systems meet the specification GB4857.5
